MSI GeForce GTX 1080 Sea Hawk X Review | 118 Data compared

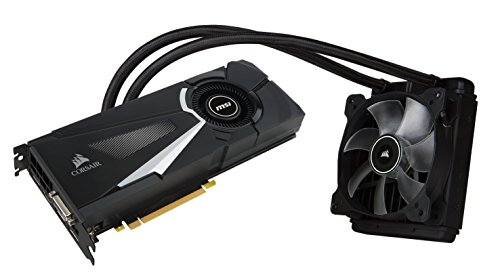

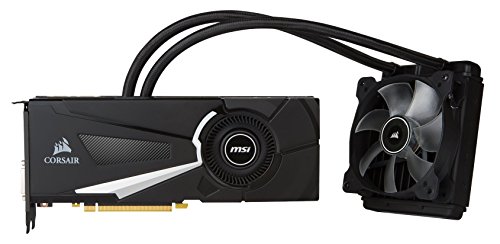

The MSI GeForce GTX 1080 SEA HAWK X is an eight-year-old, all-in-one (AIO) liquid-cooled graphics card created in collaboration with Corsair. Built on NVIDIA's Pascal architecture with 2,560 CUDA cores and 8GB of GDDR5X memory, it features a 120 mm radiator setup paired with a white LED fan. In testing on a modern Intel i9-13900K platform, a teardown and refresh using Cooler Master MasterGel Maker thermal paste lowered peak GPU temperatures from 61.9°C to 55.7°C (and hotspots from 72.9°C to 66.7°C), yielding a Furmark 2 benchmark score of 6055. Structurally, the AIO liquid cooling loop directly cools the GPU core, while a separate integrated blower-style turbo fan independently cools the VRAM and power delivery components. Pros and Cons Pros: The dedicated AIO liquid cooling setup delivers excellent thermal management for the core chip. Splitting the cooling duties prevents the VRAM and VRM heat from impacting core temperatures, which kept the thermal pads sticky and completely free of silicone oil leakage even after years of use. Its slim, 40 mm dual-slot profile also makes it highly compact compared to bulky, modern...

This review of the EVGA GTX 1080 FTW Hybrid highlights its position as a superior technical value compared to the MSI Sea Hawk X, primarily due to its $730 MSRP and high-quality custom 10-phase vCore VRM PCB. A major pro is its innovative VRAM cooling solution, which uses a copper plate to sink heat from the memory directly into the liquid cooling loop. This design allows for higher overclocking headroom—reaching stable clocks of 2151.5MHz—and includes premium features like RGB LEDs and a master/slave BIOS switch that toggles a 130% power target. However, the review identifies significant cons regarding thermal efficiency and fan quality. Despite the advanced PCB, the GPU diode runs roughly 11°C warmer than the Sea Hawk X because the liquid loop is saturated by the additional heat from the VRAM. Furthermore, EVGA’s choice of an inferior radiator fan and a shroud design that lacks proper intake/exhaust ports for the VRM fan hampers its cooling potential. While the card performs admirably and offers better build quality than its competitors, its Boost 3.0 functionality results in unpredictable clock-rate drops during...

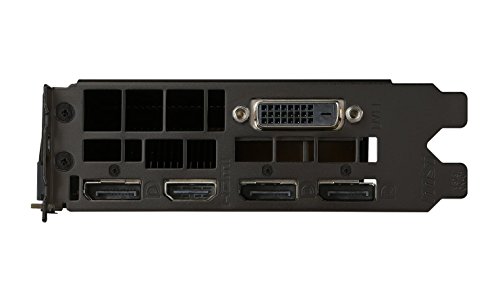

The MSI GeForce GTX 1080 Sea Hawk is a hybrid liquid-cooled graphics card featuring a closed-loop cooling solution developed in partnership with Corsair. Built directly on Nvidia’s reference PCB design, the card relies on a premium copper block and an external 120mm aluminum radiator to cool the GP104 GPU, while employing a standard radial shroud fan to cool the surrounding memory and voltage regulators,,. It features Micron GDDR5X memory modules on a 256-bit interface, a 5 -phase power configuration, an 8-pin power connector, a purely aesthetic backplate, and standard display outputs including three DisplayPorts, one HDMI, and one DVI-D port,,,. The primary advantage of the Sea Hawk is its exceptional GPU thermal performance, keeping core temperatures under a chilly 122°F (50°C) and allowing it to consistently sustain its highest GPU Boost clock speeds (fluctuating between 1875 MHz and 1936 MHz) without thermal throttling,. However, the card suffers from notable engineering shortcomings, as its unoptimized "Founders Edition" fan curve keeps the radial fan spinning at a loud 1100 RPM minimum even at idle. Combined with an older, audible Asetek pump design...

The MSI GeForce GTX 1080 SEA HAWK X is a premium, factory-overclocked graphics card engineered through a partnership between MSI and Corsair. Based on Nvidia’s 16nm Pascal GP104 architecture, the card operates with an aggressive out-of-the-box base clock of 1683 MHz and a boost clock of 1822 MHz. Its defining feature is a hybrid cooling setup utilizing a Corsair H55 closed-loop liquid-cooling solution. This features a micro-fin copper base, a low-profile 120mm aluminum radiator with a PWM-controllable fan, and a dedicated onboard fan to cool the memory and VRM components. Thanks to this liquid cooling efficiency, the GPU effectively prevents thermal throttling, consistently maintaining real-world boost clocks between 1.9 GHz and 2.0 GHz. A major advantage of this card is its thermal and acoustic efficiency, keeping GPU temperatures under a cool 50°C during operation while remaining whisper-silent. Additionally, it offers enhanced out-of-the-box performance compared to reference cards, features premium build additions like a matte black solid backplate, and simplifies power delivery by requiring only a single 8-pin power connector. On the downside, the review notes that the 10,000 MHz GDDR5X...

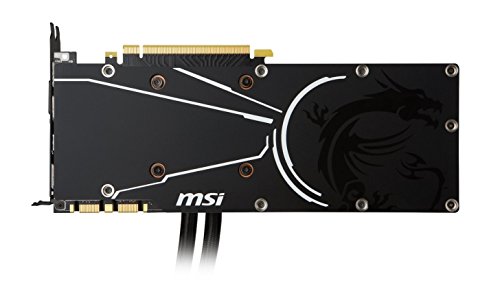

The MSI GeForce GTX 1080 SEA HAWK X is an eight-year-old, all-in-one (AIO) liquid-cooled graphics card featuring the NVIDIA Pascal architecture, 2,560 CUDA cores, and 8GB of GDDR5X memory. Originally launched in 2016 in collaboration with Corsair, this 2-slot card utilizes a 120mm liquid cooling loop to directly cool the GPU core, while a separate integrated blower fan manages the VRAM and power delivery components. In benchmarks on a modern Intel i9-13900K testbench, a simple teardown and thermal paste refresh lowered the maximum GPU core temperature by roughly 6°C (dropping from 61.9°C to 55.7°C), which yielded a marginal score improvement in Furmark 2 stress testing. Pros & Cons Pros: The dual-cooling design isolates the GPU core thermal load from the VRAM, preventing traditional oil leakage or degradation of the thermal pads over long-term use. Its slim 40mm thickness easily restricts it to a 2-slot form factor, and it retains impressive structural integrity with zero PCB warping thanks to a sturdy Dragon Soul metal backplate. Cons: Architecturally, the card lacks modern visual flourishes, featuring a basic, non-RGB Corsair logo and a...
