MSI MPG Z690 Carbon EK X review: 109 specs compared

Avg. price:~£520CPU socket:LGA 1700Chipset:Intel Z690Form factor:ATX

MSI MPG Z690 Carbon EK X Review: Compare 109 technical specifications and 7 expert reviews to see how this product ranks in the Motherboards category and whether it is worth buying.

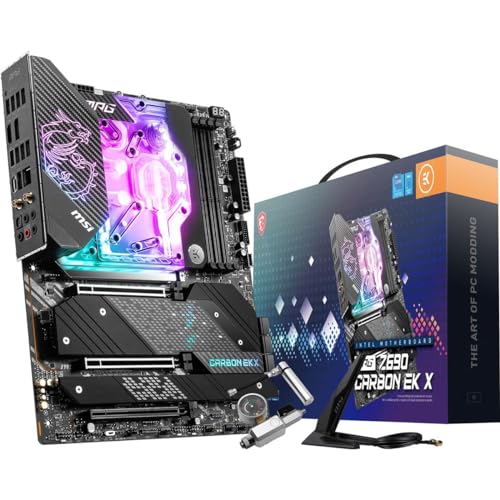

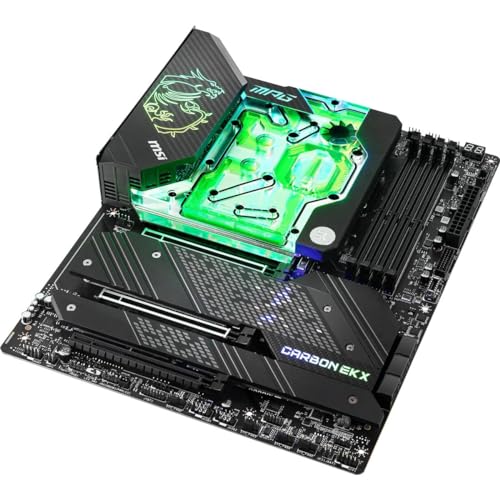

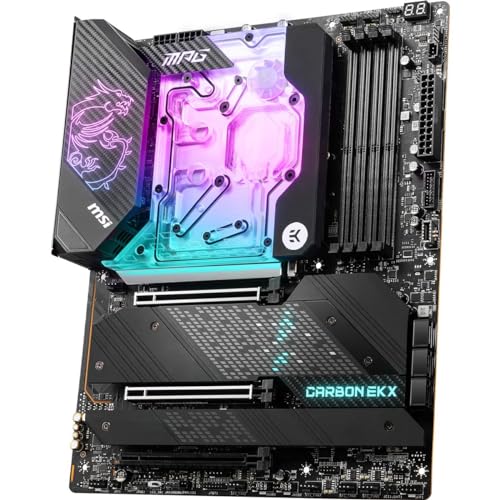

MSI MPG Z690 Carbon EK X
8.1/10

Overall score

Score
8.1/ 10
✕
What it is
Our main score for this model, 1–10. It combines specs, expert reviews, best-of lists, ratings from across the web and owners.
How we count it
Parts: Technical score 45%, Reviews score 20%, List score 20%, User score 10%, Sentiment score 5%
Marks: Each part gets a mark out of 10. For reviews, lists and owners, a typical model in this category gets about 8 and the best one gets 10.
No data yet: A part with no data shows "?". It counts as the mark of a weaker model in this category (4 in 5 models with data score higher). This way, models with reviews, lists and owners usually come out ahead.
Score distribution
â–¼
<55-66-77-88-99-10
Score components

45%

8.2

Technical score

20%

8.5

Reviews score

20%

?

List scoreNot enough data yet, so we use 7.5, the mark of a weaker model in this category

10%

7.8

User score

5%

?

Sentiment scoreNot enough data yet, so we use 8.2, the mark of a weaker model in this category

â–²Better than 87% of motherboards
8.0

Value for money

Value for money
8.0/ 10
✕
What it is
An indicator that combines the motherboard's overall rating with its cost.
When it matters
When you are looking for a motherboard that offers a strong balance of features, performance, and price.
Score distribution
â–¼
<55-66-77-88-99-10
Score components

70%

8.1

Overall score

30%

7.8

Price

â–²Better than 67%
8.2

Technical score

Technical score
8.2/ 10
✕
What it is
How good the specs are compared with the other models in this category, 1–10.
How we count it
Areas: We rate the specs in each area against the other models in this category.
Weighting: The areas that matter most to buyers count more. The shares are shown under Score components.
Share: The technical score is 45% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10
Score components

19%

8.8

Memory

16%

9.3

Platform

16%

7.7

Storage

15%

8.4

Network

13%

7.3

Ports

8%

5.3

Expansion

8%

8.9

Power & Cooling

5%

9.7

Audio

â–²Better than 87%
8.5

Reviews score

Reviews score
8.5/ 10
✕
What it is
Average grade from independent test sites, magazines and video reviewers, 1–10.
How we count it
Grades: Each review's own score is converted to 1–10; without one, we grade the review ourselves. Big test sites count more, short reviews half as much as full tests. A video review counts half.
Score: The average grade is 80% of the review mark; the number of reviews is the other 20% (1 review = 5, the typical number in this category = 8, the most-reviewed model = 10).
Enough data: With few reviews, the average grade is pulled toward the typical grade of this category. No reviews yet: 7.8 for now.
Share: Reviews count 20% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10

80%

8.5

Average grade

20%

8.8

Popularity

Grades by review (7)
7 reviews: 3 with a printed score, 4 estimated from the review. Reviews count 20% of the overall score.
Ratings from across the web count in the User score, not in this score.
â–²Better than 68%
7.8

User score

User score
7.8/ 10
✕
What it is
How happy buyers are with this model, based on ratings from across the web.
How we count it
Enough data: A model needs at least 1 rating from across the web. Without one, it counts as 7.9, the mark of a weaker rated model in this category.
Share: User score counts 10% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10

70%

8.2

Rating

30%

6.8

Popularity

â–¼Worse than 87%
?

List score

List score
7.5/ 10
✕
What it is
How often independent test sites, magazines and video reviewers put this model in their best-of lists for this category.
How we count it
Points: The model in the most lists of this category gets 10; the others get 8 to 10 in proportion. In no list yet: 7.5. Lists count 20% of the overall score.
Enough data: Every list counts, even a single one. With fewer than 5 best-of lists in the category, this part is left out.
Lists with this model (0)
Not in any best-of list yet, so this part counts as 7.5. Models in a list get 8 to 10.
Not in any best-of list yet
  • msi-mpg-z690-carbon-ek-x
  • msi-mpg-z690-carbon-ek-x
  • msi-mpg-z690-carbon-ek-x
  • msi-mpg-z690-carbon-ek-x
msi-mpg-z690-carbon-ek-x
msi-mpg-z690-carbon-ek-x
msi-mpg-z690-carbon-ek-x
msi-mpg-z690-carbon-ek-x
Where to buy
*As an Amazon Associate, we earn from qualifying purchases.

What reviewers say about the MSI MPG Z690 Carbon EK X

Based on 7

Reviewers love the cooling and M.2 slots, but are split on the water loop setup.
Praised
Mixed views
Pick a topic to see who said what
Loading...
Loading category ranking...

Technical Specifications of motherboard MSI MPG Z690 Carbon EK X

Technical score
Technical score
8.2/ 10
✕
What it is
How good the specs are compared with the other models in this category, 1–10.
How we count it
Areas: We rate the specs in each area against the other models in this category.
Weighting: The areas that matter most to buyers count more. The shares are shown under Score components.
Share: The technical score is 45% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10
Score components:

19%

8.8

Memory

16%

9.3

Platform

16%

7.7

Storage

15%

8.4

Network

13%

7.3

Ports

8%

5.3

Expansion

8%

8.9

Power & Cooling

5%

9.7

Audio

8.2
Reviews score
8.5
User score
7.8
List score
?
Value for money
Value for money
8.0/ 10
✕
What it is
An indicator that combines the motherboard's overall rating with its cost.
When it matters
When you are looking for a motherboard that offers a strong balance of features, performance, and price.
Score distribution
â–¼
<55-66-77-88-99-10
Score components:

70%

8.1

Overall score

30%

7.8

Price

8.0
CPU socket
LGA 1700
This motherboard uses LGA 1700, which is more up-to-date than 54.7% of Motherboards and the same as 22.7% of Motherboards.
CPU platform
Intel
Chipset
Intel Z690
This motherboard uses Intel Z690, which is more capable than 68.4% of Motherboards and as capable as 3.7% of Motherboards.
Form factor
ATX
Integrated graphics support
yes
This motherboard supports integrated graphics. 10.2% of motherboards support this feature.
Show more
DDR memory version
DDR5
This motherboard uses DDR5, which is more modern than 63.8% of Motherboards and the same as 36.2% of Motherboards.
Memory slots
4
This motherboard has 4 Memory slots, which is more than 21.9% of motherboards and equal to 72% of motherboards.
Maximum memory capacity
192 GB
This motherboard supports up to 192 GB of memory, which is more than 72% of motherboards and equal to 10.4% of motherboards.
requires BIOS update for full capacity
Memory channels
2
Maximum RAM speed
6,666 MT/s
This motherboard supports memory speeds up to 6,666 MT/s, which is higher than that of 76.3% of motherboards and equal to that of 0.1% of motherboards.
Show more
N. of M.2 sockets
5
This motherboard has 5 M.2 sockets, which is more than 94.8% of motherboards and equal to 4.3% of motherboards.
M.2 slot interface per slot
2x PCIe 4.0 x4, 1x PCIe 4.0 x4/SATA, 1x PCIe 3.0 x4/SATA, 1x PCIe 4.0 x4
This motherboard offers M.2 slots: 2x PCIe 4.0x4, 1x PCIe 4.0x4/SATA, 1x PCIe 3.0x4/SATA, 1x PCIe 4.0x4, which is faster than 78.9% of Motherboards.
N. of SATA 3 connectors
6
This motherboard has 6 SATA 3 connectors, which is more than 53.5% of motherboards and equal to 31.2% of motherboards.
some SATA ports disabled with certain M.2 use
Supported RAID levels
0/1/5/10
This motherboard RAID support: 0/1/5/10, which is more flexible than 32.5% of Motherboards and the same as 67.5% of Motherboards.
JBOD excluded from RAID-level set
NVMe RAID support
yes
This motherboard supports NVMe RAID. 40.2% of motherboards support this feature.
Show more
What reviewers say
N. of PCIe 5.0 x16 slots
2
This motherboard has 2 PCIe 5.0x16 slots, which is more than 95.1% of motherboards and equal to 4.4% of motherboards.
N. of PCIe 4.0 x16 slots
0
This motherboard has 0 PCIe 4.0x16 slots, which is fewer than 44.8% of motherboards and equal to 55.2% of motherboards.
N. of PCIe 3.0 x16 slots
1
This motherboard has 1 PCIe 3.0x16 slots, which is more than 40.5% of motherboards and equal to 26.8% of motherboards.
runs at x4 mode
PCIe slot electrical configuration
x16/x0/x4
This motherboard splits its PCIe lanes as x16/x0/x4, which is more generous than 51% of Motherboards and the same as 9.6% of Motherboards.
PCIe bifurcation support
yes
This motherboard supports PCIe bifurcation. 40.3% of motherboards support this feature.
x8/x8.
Show more
Total USB ports (rear I/O)
10
This motherboard has 10 USB ports (rear I/O), which is more than 75.7% of motherboards and equal to 15.4% of motherboards.
Total USB ports (including headers)
17
This motherboard has 17 USB ports (including headers), which is more than 71.3% of motherboards and equal to 10.4% of motherboards.
Total USB-C ports (rear I/O)
1
This motherboard has 1 USB-C ports (rear I/O), which is more than 35.8% of motherboards and equal to 48.3% of motherboards.
Total USB-C ports (including headers)
2
This motherboard has 2 USB-C ports (including headers), which is more than 51.7% of motherboards and equal to 33% of motherboards.
N. of USB 3.2 Gen2x2 ports (USB-C)
1
This motherboard has 1 USB 3.2 Gen2x2 ports (USB-C), which is more than 82.1% of motherboards and equal to 17.7% of motherboards.
Show more
LAN speed
2.5 Gbps
This motherboard supports LAN speeds up to 2.5 Gbps, which is higher than that of 49% of motherboards and equal to that of 41.4% of motherboards.
LAN controller
?
N. of RJ45 ports
1
This motherboard has 1 RJ45 ports, which is fewer than 14.4% of motherboards and equal to 85.6% of motherboards.
Wi-Fi connectivity
yes
This motherboard supports Wi-Fi connectivity. 50% of motherboards support this feature.
Wi-Fi version
Wi-Fi 6E (802.11ax)
This motherboard uses Wi-Fi 6E (802.11ax), which is newer than 71.5% of Motherboards and the same as 16.7% of Motherboards.
Show more
Audio codec
Realtek ALC4080
This motherboard uses Realtek ALC4080, which is higher-end than 90.4% of Motherboards and the same as 6.4% of Motherboards.
Audio channels
7.1
This motherboard offers 7.1 audio channels, which is more than 4.7% of motherboards and equal to 95.3% of motherboards.
Audio SNR
120 dB
This motherboard has an audio SNR of 120 dB, which is higher than that of 55.6% of motherboards and equal to that of 41% of motherboards.
Headphone amp support
yes
This motherboard supports a headphone amp. 41.2% of motherboards support this feature.
N. of 3.5mm audio jacks
5
This motherboard has 5 3.5mm audio jacks, which is more than 50.6% of motherboards and equal to 36.3% of motherboards.
Show more
VRM phases
18
This motherboard has 18 VRM phases, which is more than 88.5% of motherboards and equal to 0.5% of motherboards.
N. of CPU power connectors
2
This motherboard has 2 CPU power connectors, which is more than 54.9% of motherboards and equal to 44.8% of motherboards.
N. of fan headers
8
This motherboard has 8 fan headers, which is more than 82.2% of motherboards and equal to 15% of motherboards.
Pump header
yes
This motherboard has a pump header. 22.1% of motherboards include this feature.
Pump header max current
3 A
This motherboard supports up to 3 A on the pump header, which is higher than that of 77.8% of motherboards and equal to that of 22.2% of motherboards.
Show more
What reviewers say

MSI MPG Z690 Carbon EK X vs the average motherboard

246810TotalPlatformMemoryStorageExpansionPortsNetworkAudioPower & Cooling
  • 3 more M.2 sockets
    This motherboard has more M.2 sockets than the average motherboard (5 vs 2). The average motherboard has 2 M.2 socket/s.
    5 vs 2
  • 2 more PCIe 5.0x16 slots
    This motherboard has more PCIe 5.0x16 slots than the average motherboard (2 vs 0). The average motherboard has 0 PCIe 5.0x16 slot/s.
    2 vs 0
  • 4 more USB 3.2 Gen2 ports
    This motherboard has more USB 3.2 Gen2 ports than the average motherboard (5 vs 1). The average motherboard has 1 USB 3.2 Gen2 port/s.
    5 vs 1
  • More modern memory type
    This motherboard uses a more modern memory type than the average motherboard (DDR5 vs DDR4).
    DDR5 vs DDR4
  • More capable onboard audio
    This motherboard has a higher-end audio codec than the average motherboard (Realtek ALC4080 vs Realtek ALC897).
    Realtek ALC4080 vs Realtek ALC897
  • 1 more USB 3.2 Gen2x2 USB-C ports
    This motherboard has more USB 3.2 Gen2x2 USB-C ports than the average motherboard (1 vs 0). The average motherboard has 0 USB 3.2 Gen2x2 USB-C port/s.
    1 vs 0
  • More up-to-date socket
    This motherboard uses a more up-to-date socket than the average motherboard (LGA 1700 vs LGA 1151).
    LGA 1,700 vs LGA 1,151
  • 2 more rear USB ports
    This motherboard has more rear USB ports than the average motherboard (10 vs 8). The average motherboard has 8 rear USB port/s.
    10 vs 8
  • More up-to-date socket
    This motherboard uses a more up-to-date socket than the average motherboard (LGA 1700 vs LGA 1151).
    LGA 1,700 vs LGA 1,151
  • Integrated I/O shield
    This motherboard has an integrated I/O shield, while the average motherboard does not. 46.6% of motherboards include an integrated I/O shield.
  • Includes POST code display
    This motherboard has a POST code display, while the average motherboard does not. 26.7% of motherboards include a POST code display.
  • Rear-panel CMOS reset button
    This motherboard has a rear-panel CMOS reset button, while the average motherboard does not. 26.5% of motherboards include a rear-panel CMOS reset button.
    Rear-panel Clear CMOS button.
  • More modern memory type
    This motherboard uses a more modern memory type than the average motherboard (DDR5 vs DDR4).
    DDR5 vs DDR4
  • 50% more maximum memory capacity
    This motherboard has more maximum memory capacity than the average motherboard (192 GB vs 128 GB). The average motherboard supports 128 GB of memory.
    requires BIOS update for full capacity
    192 GB vs 128 GB
  • 41.8% higher maximum RAM speed
    This motherboard has a higher maximum RAM speed than the average motherboard (6,666 MT/s vs 4,699.5 MT/s). The average motherboard supports RAM speed of 4,699.5 MT/s.
    6,666 MT/s vs 4,699.5 MT/s
  • 3 more M.2 sockets
    This motherboard has more M.2 sockets than the average motherboard (5 vs 2). The average motherboard has 2 M.2 socket/s.
    5 vs 2
  • 2 more SATA 3 connectors
    This motherboard has more SATA 3 connectors than the average motherboard (6 vs 4). The average motherboard has 4 SATA 3 connectors.
    some SATA ports disabled with certain M.2 use
    6 vs 4
  • 2 more PCIe 5.0x16 slots
    This motherboard has more PCIe 5.0x16 slots than the average motherboard (2 vs 0). The average motherboard has 0 PCIe 5.0x16 slot/s.
    2 vs 0
  • 4 more USB 3.2 Gen2 ports
    This motherboard has more USB 3.2 Gen2 ports than the average motherboard (5 vs 1). The average motherboard has 1 USB 3.2 Gen2 port/s.
    5 vs 1
  • 1 more USB 3.2 Gen2x2 USB-C ports
    This motherboard has more USB 3.2 Gen2x2 USB-C ports than the average motherboard (1 vs 0). The average motherboard has 0 USB 3.2 Gen2x2 USB-C port/s.
    1 vs 0
  • 2 more rear USB ports
    This motherboard has more rear USB ports than the average motherboard (10 vs 8). The average motherboard has 8 rear USB port/s.
    10 vs 8
  • 2 more total USB connections
    This motherboard has more total USB connections than the average motherboard (17 vs 15). The average motherboard has 15 total USB connections.
    17 vs 15
  • 1 more USB4 or Thunderbolt headers
    This motherboard has more USB4 or Thunderbolt headers than the average motherboard (1 vs 0). The average motherboard has 0 USB4 or Thunderbolt header/s.
    1 vs 0
  • 1 more USB 3.2 Gen2 headers
    This motherboard has more USB 3.2 Gen2 headers than the average motherboard (1 vs 0). The average motherboard has 0 USB 3.2 Gen2 header/s.
    1 vs 0
  • 1 more total USB-C connections
    This motherboard has more total USB-C connections than the average motherboard (2 vs 1). The average motherboard has 1 total USB-C connections.
    2 vs 1
  • More recent Wi-Fi standard
    This motherboard has a more recent Wi-Fi standard than the average motherboard (Wi-Fi 6E (802.11ax) vs Wi-Fi 5 (802.11ac)).
    Wi-Fi 6E (802.11ax) vs Wi-Fi 5 (802.11ac)
  • Supports Bluetooth
    This motherboard supports Bluetooth, while the average motherboard does not. 49% of motherboards support Bluetooth.
  • More capable onboard audio
    This motherboard has a higher-end audio codec than the average motherboard (Realtek ALC4080 vs Realtek ALC897).
    Realtek ALC4080 vs Realtek ALC897
  • 5 dB higher audio SNR
    This motherboard has a higher audio SNR than the average motherboard (120 dB vs 115 dB). The average motherboard has audio SNR of 115 dB.
    120 dB vs 115 dB
  • 2 more 3.5mm audio jacks
    This motherboard has more 3.5mm audio jacks than the average motherboard (5 vs 3). The average motherboard has 3 3.5mm audio jacks.
    5 vs 3
  • More VRM phases
    This motherboard has more VRM phases than the average motherboard (18 vs 10). The average motherboard has 10 VRM phase/s.
    18 vs 10
  • 1 more CPU power connectors
    This motherboard has more CPU power connectors than the average motherboard (2 vs 1). The average motherboard has 1 CPU power connectors.
    2 vs 1
  • 2.5 more fan headers
    This motherboard has more fan headers than the average motherboard (8 vs 5.5). The average motherboard has 5.5 fan header/s.
    8 vs 5.5
  • Includes onboard RGB lighting
    This motherboard has onboard RGB lighting, while the average motherboard does not. 50% of motherboards include onboard RGB lighting.
  • 1 A higher pump header current limit
    This motherboard has a higher pump header current than the average motherboard (3 A vs 2 A). The average motherboard provides pump header current of 2 A.
    3 A vs 2 A
  • 4 fewer USB 3.2 Gen1 ports
    This motherboard has fewer USB 3.2 Gen1 ports than the average motherboard (0 vs 4). The average motherboard has 4 USB 3.2 Gen1 port/s.
    rear Type-A ports are Gen 2
    0 vs 4
  • More basic chipset
    This motherboard uses a more basic chipset than the average motherboard (Intel Z690 vs Intel B860).
    Intel Z690 vs Intel B860
  • 3.47x more expensive
    MSI MPG Z690 Carbon EK X is more expensive than the average motherboard (£520 vs £150).
    £520 vs £150
  • 1 fewer PCIe x1 slots
    This motherboard has fewer PCIe x1 slots than the average motherboard (0 vs 1). The average motherboard has 1 PCIe x1 slot/s.
    0 vs 1
  • Less generous lane split
    This motherboard splits its PCIe lanes less generously than the average motherboard (x16/x0/x4 vs x16/x0/x4, x8/x8/x4).
    x16/x0/x4 vs x16/x0/x4, x8/x8/x4
  • Slower NVMe storage slots
    This motherboard has slower M.2 slots than the average motherboard (2x PCIe 4x4, 1x PCIe 4x4/SATA, 1x PCIe 3x4/SATA, 1x PCIe 4x4 vs 1x PCIe 5x4, 2x PCIe 4x4).
    2x PCIe 4.0x4, 1x PCIe 4.0x4/SATA, 1x PCIe 3.0x4/SATA, 1x PCIe 4.0x4 vs 1x PCIe 5.0x4, 2x PCIe 4.0x4
  • 7.1% lower user score
    User score
    7.8/ 10
    ✕
    What it is
    How happy buyers are with this model, based on ratings from across the web.
    How we count it
    Enough data: A model needs at least 1 rating from across the web. Without one, it counts as 7.9, the mark of a weaker rated model in this category.
    Share: User score counts 10% of the overall score.
    Score distribution
    â–¼
    <55-66-77-88-99-10

    70%

    8.2

    Rating

    30%

    6.8

    Popularity

    7.8 vs 8.4
  • 3.47x more expensive
    MSI MPG Z690 Carbon EK X is more expensive than the average motherboard (£520 vs £150).
    £520 vs £150
  • 7.1% lower user score
    User score
    7.8/ 10
    ✕
    What it is
    How happy buyers are with this model, based on ratings from across the web.
    How we count it
    Enough data: A model needs at least 1 rating from across the web. Without one, it counts as 7.9, the mark of a weaker rated model in this category.
    Share: User score counts 10% of the overall score.
    Score distribution
    â–¼
    <55-66-77-88-99-10

    70%

    8.2

    Rating

    30%

    6.8

    Popularity

    7.8 vs 8.4
  • More basic chipset
    This motherboard uses a more basic chipset than the average motherboard (Intel Z690 vs Intel B860).
    Intel Z690 vs Intel B860
  • Slower NVMe storage slots
    This motherboard has slower M.2 slots than the average motherboard (2x PCIe 4x4, 1x PCIe 4x4/SATA, 1x PCIe 3x4/SATA, 1x PCIe 4x4 vs 1x PCIe 5x4, 2x PCIe 4x4).
    2x PCIe 4.0x4, 1x PCIe 4.0x4/SATA, 1x PCIe 3.0x4/SATA, 1x PCIe 4.0x4 vs 1x PCIe 5.0x4, 2x PCIe 4.0x4
  • 1 fewer PCIe x1 slots
    This motherboard has fewer PCIe x1 slots than the average motherboard (0 vs 1). The average motherboard has 1 PCIe x1 slot/s.
    0 vs 1
  • Less generous lane split
    This motherboard splits its PCIe lanes less generously than the average motherboard (x16/x0/x4 vs x16/x0/x4, x8/x8/x4).
    x16/x0/x4 vs x16/x0/x4, x8/x8/x4
  • 4 fewer USB 3.2 Gen1 ports
    This motherboard has fewer USB 3.2 Gen1 ports than the average motherboard (0 vs 4). The average motherboard has 4 USB 3.2 Gen1 port/s.
    rear Type-A ports are Gen 2
    0 vs 4

Video reviews

Hands-on testing, unboxing, and real-world video evaluations

Hands-on video, no verdict
Overview video
Brand video

Expert reviews

In-depth analysis and verdict from leading tech publications

8.0
tomshardware.com
✓ explicit
19/03/2022
Test verdict · Water-cooled board
Verdict
The MSI MPG Z690 Carbon EK X is a well-rounded board for a water-cooled Alder Lake build, with less hassle than DIY, though its VRMs are only mediocre.
8.6
custompc.com
✓ explicit
04/10/2023
Hands-on review · Custom loop board
Verdict
The MSI MPG Z690 Carbon EK X is a great starting point for a water-cooled 12th-gen Intel build, though it costs a lot.
9.5
pcmasters.de
≈ estimated
22/07/2022
Hands-on test · Z690 motherboard
Verdict
The MSI MPG Z690 Carbon EK X suits builders who already run a custom water loop, with 20 VRM phases that stay cool and four full-speed M.2 slots.
7.0
hardwareluxx.de
≈ estimated
04/02/2022
Short test · Water-cooled board
Verdict
The MSI MPG Z690 Carbon EK X suits builders already planning a water loop, but its cost is very high.
8.0
overclocking.com
≈ estimated
11/02/2022
Feature review · Water-cooled board
Verdict
The MSI MPG Z690 Carbon EK X is a mid-range gaming board for builders planning a full custom loop, though it lacks power and reset buttons.
9.5
hardwarecooking.fr
≈ estimated
15/03/2022
Lab test · Water-cooled board
Verdict
The MSI MPG Z690 Carbon EK X suits Alder Lake builders planning a custom loop, with a fair price, though its monoblock leaves the chipset uncooled.
9.2
profesionalreview.com
✓ explicit
03/01/2022
Unboxing and design · Water-cooled board
Verdict
The MSI MPG Z690 Carbon EK X suits custom water-cooling builders, with a well-finished block cooling the CPU, power circuitry and main M.2 slot.

Third-party reviews

What customers like about MSI MPG Z690 Carbon EK X

  • High-value water-cooling solution with an included EK-Quantum monoblock that cools the CPU, VRMs, and primary M.2 slot.
  • Exceptional storage expansion featuring five M.2 slots (four PCIe 4.0, one PCIe 3.0) and six SATA ports.
  • Solid overclocking potential supported by an 18+1+1 power delivery design and 75A smart power stages.
  • Excellent connectivity options including Wi-Fi 6E, 2.5G LAN, and a 20Gbps USB-C port.
  • Simplified custom loop building through EK's Matrix 7 standard, making port alignment easier for enthusiasts.
  • Included premium accessories such as an EK leak tester, a 16GB USB drive with drivers, and a screwdriver set.

What customers don't like about MSI MPG Z690 Carbon EK X

  • Replacing the primary SSD requires draining the entire water loop and removing the monoblock.
  • Rear I/O is somewhat dated for its price, featuring four legacy USB 2.0 ports instead of all high-speed options.
  • The monoblock mounting mechanism is basic and requires installation outside of the case on a flat surface.
  • Memory performance in some AIDA64 benchmarks was noted to be slower than average for the Z690 platform.
  • Lack of advanced networking features like 5Gbps or 10Gbps LAN, which are found on some competitors in this price range.
  • Initial BIOS versions had some stability and performance issues that required manual updates to resolve.

Verdict

The MSI MPG Z690 Carbon EK X is a premium ATX motherboard designed in collaboration with EK Water Blocks, featuring a custom-designed monoblock that provides liquid cooling for the LGA 1700 CPU, the direct 18+1+1 phase 75A power delivery system, and the primary M.2 slot. Key specifications include support for DDR5 memory up to 6666+ MHz (OC), dual PCIe 5.0 x16 slots, and five total M.2 slots (four PCIe 4.0 x4) alongside six SATA 6Gb/s ports. High-speed connectivity is provided by Intel Wi-Fi 6E, 2.5G LAN, and a Lightning USB 3.2 Gen 2x2 20Gbps Type-C port, while enthusiasts benefit from a built-in flow indicator and an included EK leak tester. Its main pros are the integrated, high-performance liquid cooling solution for critical components and an expansive storage layout, though it lacks on-board overclocking buttons and has been noted for having higher power consumption and clunky proprietary software.

Compare MSI MPG Z690 Carbon EK X with other products in the Motherboards category

1Product to compare no. 1
VS
2Product to compare no. 2
VS
3Product to compare no. 3 (optional)

Graphic comparison of MSI MPG Z690 Carbon EK X and other products in the Motherboards category

No results found
