MSI MEG Z690 Ace review: 109 specs compared

Avg. price:~£630CPU socket:LGA 1700Chipset:Intel Z690Form factor:E-ATX

MSI MEG Z690 Ace Review: Compare 109 technical specifications and 8 expert and video reviews to see how this product ranks in the Motherboards category and whether it is worth buying.

MSI MEG Z690 Ace
8.3/10

Overall score

Score
8.3/ 10
✕
What it is
Our main score for this model, 1–10. It combines specs, expert reviews, best-of lists, ratings from across the web and owners.
How we count it
Parts: Technical score 45%, Reviews score 20%, List score 20%, User score 10%, Sentiment score 5%
Marks: Each part gets a mark out of 10. For reviews, lists and owners, a typical model in this category gets about 8 and the best one gets 10.
No data yet: A part with no data shows "?". It counts as the mark of a weaker model in this category (4 in 5 models with data score higher). This way, models with reviews, lists and owners usually come out ahead.
Score distribution
â–¼
<55-66-77-88-99-10
Score components

45%

8.4

Technical score

20%

8.7

Reviews score

20%

?

List scoreNot enough data yet, so we use 7.5, the mark of a weaker model in this category

10%

8.7

User score

5%

?

Sentiment scoreNot enough data yet, so we use 8.4, the mark of a weaker model in this category

★Better than 93% of motherboards
8.0

Value for money

Value for money
8.0/ 10
✕
What it is
An indicator that combines the motherboard's overall rating with its cost.
When it matters
When you are looking for a motherboard that offers a strong balance of features, performance, and price.
Score distribution
â–¼
<55-66-77-88-99-10
Score components

70%

8.3

Overall score

30%

7.2

Price

â–²Better than 67%
8.4

Technical score

Technical score
8.4/ 10
✕
What it is
How good the specs are compared with the other models in this category, 1–10.
How we count it
Areas: We rate the specs in each area against the other models in this category.
Weighting: The areas that matter most to buyers count more. The shares are shown under Score components.
Share: The technical score is 45% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10
Score components

19%

7.7

Memory

16%

9.6

Platform

16%

7.6

Storage

15%

9.5

Network

13%

7.7

Ports

8%

6.8

Expansion

8%

9.1

Power & Cooling

5%

9.8

Audio

★Better than 91%
8.7

Reviews score

Reviews score
8.7/ 10
✕
What it is
Average grade from independent test sites, magazines and video reviewers, 1–10.
How we count it
Grades: Each review's own score is converted to 1–10; without one, we grade the review ourselves. Big test sites count more, short reviews half as much as full tests. A video review counts half.
Score: The average grade is 80% of the review mark; the number of reviews is the other 20% (1 review = 5, the typical number in this category = 8, the most-reviewed model = 10).
Enough data: With few reviews, the average grade is pulled toward the typical grade of this category. No reviews yet: 7.8 for now.
Share: Reviews count 20% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10

80%

8.7

Average grade

20%

8.9

Popularity

Grades by review (8)
6 reviews: 3 with a printed score, 3 estimated from the review. 2 video reviews, each counting half as much as a written test. Reviews count 20% of the overall score.
Ratings from across the web count in the User score, not in this score.
â–²Better than 88%
8.7

User score

User score
8.7/ 10
✕
What it is
How happy buyers are with this model, based on ratings from across the web.
How we count it
Enough data: A model needs at least 1 rating from across the web. Without one, it counts as 7.9, the mark of a weaker rated model in this category.
Share: User score counts 10% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10

70%

8.9

Rating

30%

8.4

Popularity

â–²Better than 67%
?

List score

List score
7.5/ 10
✕
What it is
How often independent test sites, magazines and video reviewers put this model in their best-of lists for this category.
How we count it
Points: The model in the most lists of this category gets 10; the others get 8 to 10 in proportion. In no list yet: 7.5. Lists count 20% of the overall score.
Enough data: Every list counts, even a single one. With fewer than 5 best-of lists in the category, this part is left out.
Lists with this model (0)
Not in any best-of list yet, so this part counts as 7.5. Models in a list get 8 to 10.
Not in any best-of list yet
  • msi-meg-z690-ace
  • msi-meg-z690-ace
  • msi-meg-z690-ace
  • msi-meg-z690-ace
  • msi-meg-z690-ace
  • msi-meg-z690-ace
  • msi-meg-z690-ace
msi-meg-z690-ace
msi-meg-z690-ace
msi-meg-z690-ace
msi-meg-z690-ace
msi-meg-z690-ace
msi-meg-z690-ace
msi-meg-z690-ace
Where to buy
*As an Amazon Associate, we earn from qualifying purchases.

What reviewers say about the MSI MEG Z690 Ace

Based on 6 · 2

Power delivery, design and USB ports impress, but reviewers split on M.2 storage and dislike the heft and networking.
Praised
Mixed views
Criticised
Pick a topic to see who said what
Loading...
Loading category ranking...

Technical Specifications of motherboard MSI MEG Z690 Ace

Technical score
Technical score
8.4/ 10
✕
What it is
How good the specs are compared with the other models in this category, 1–10.
How we count it
Areas: We rate the specs in each area against the other models in this category.
Weighting: The areas that matter most to buyers count more. The shares are shown under Score components.
Share: The technical score is 45% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10
Score components:

19%

7.7

Memory

16%

9.6

Platform

16%

7.6

Storage

15%

9.5

Network

13%

7.7

Ports

8%

6.8

Expansion

8%

9.1

Power & Cooling

5%

9.8

Audio

8.4
Reviews score
8.7
User score
8.7
List score
?
Value for money
Value for money
8.0/ 10
✕
What it is
An indicator that combines the motherboard's overall rating with its cost.
When it matters
When you are looking for a motherboard that offers a strong balance of features, performance, and price.
Score distribution
â–¼
<55-66-77-88-99-10
Score components:

70%

8.3

Overall score

30%

7.2

Price

8.0
CPU socket
LGA 1700
This motherboard uses LGA 1700, which is more up-to-date than 54.7% of Motherboards and the same as 22.7% of Motherboards.
CPU platform
Intel
Chipset
Intel Z690
This motherboard uses Intel Z690, which is more capable than 68.4% of Motherboards and as capable as 3.7% of Motherboards.
Form factor
E-ATX
Integrated graphics support
yes
This motherboard supports integrated graphics. 10.2% of motherboards support this feature.
Rear outputs: DisplayPort + USB-C DisplayPort.
Show more
DDR memory version
DDR5
This motherboard uses DDR5, which is more modern than 63.8% of Motherboards and the same as 36.2% of Motherboards.
Memory slots
4
This motherboard has 4 Memory slots, which is more than 21.9% of motherboards and equal to 72% of motherboards.
Maximum memory capacity
128 GB
This motherboard supports up to 128 GB of memory, which is more than 40.1% of motherboards and equal to 31.9% of motherboards.
requires BIOS update for full capacity
Memory channels
2
Maximum RAM speed
4,800 MT/s
This motherboard supports memory speeds up to 4,800 MT/s, which is higher than that of 51.4% of motherboards and equal to that of 5.1% of motherboards.
Show more
N. of M.2 sockets
5
This motherboard has 5 M.2 sockets, which is more than 94.8% of motherboards and equal to 4.3% of motherboards.
M.2 slot interface per slot
4x PCIe 4.0 x4, 1x PCIe 3.0 x4/SATA
This motherboard offers M.2 slots: 4x PCIe 4.0x4, 1x PCIe 3.0x4/SATA, which is faster than 78.7% of Motherboards.
N. of SATA 3 connectors
6
This motherboard has 6 SATA 3 connectors, which is more than 53.5% of motherboards and equal to 31.2% of motherboards.
some SATA ports disabled with certain M.2 use
Supported RAID levels
0/1/5/10
This motherboard RAID support: 0/1/5/10, which is more flexible than 32.5% of Motherboards and the same as 67.5% of Motherboards.
JBOD excluded from RAID-level set
NVMe RAID support
yes
This motherboard supports NVMe RAID. 40.2% of motherboards support this feature.
Show more
What reviewers say
N. of PCIe 5.0 x16 slots
2
This motherboard has 2 PCIe 5.0x16 slots, which is more than 95.1% of motherboards and equal to 4.4% of motherboards.
N. of PCIe 4.0 x16 slots
1
This motherboard has 1 PCIe 4.0x16 slots, which is more than 55.2% of motherboards and equal to 35.7% of motherboards.
runs at x4 mode
N. of PCIe 3.0 x16 slots
0
This motherboard has 0 PCIe 3.0x16 slots, which is fewer than 59.6% of motherboards and equal to 40.4% of motherboards.
PCIe slot electrical configuration
x16/x0/x4, x8/x8/x4
This motherboard splits its PCIe lanes as x16/x0/x4, x8/x8/x4, which is more generous than 62.6% of Motherboards and the same as 12.4% of Motherboards.
PCIe bifurcation support
yes
This motherboard supports PCIe bifurcation. 40.3% of motherboards support this feature.
x8/x8/x4, x16/x0/x4.
Show more

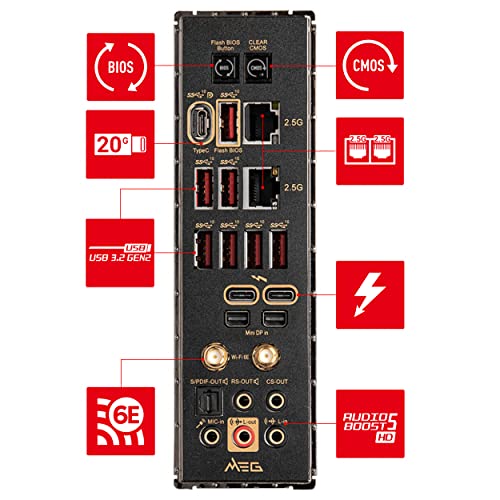

Total USB ports (rear I/O)
10
This motherboard has 10 USB ports (rear I/O), which is more than 75.7% of motherboards and equal to 15.4% of motherboards.
includes USB4 / Thunderbolt ports.
Total USB ports (including headers)
20
This motherboard has 20 USB ports (including headers), which is more than 91.3% of motherboards and equal to 3% of motherboards.
includes USB4 / Thunderbolt ports.
Total USB-C ports (rear I/O)
3
This motherboard has 3 USB-C ports (rear I/O), which is more than 96.5% of motherboards and equal to 2.7% of motherboards.
Thunderbolt / USB4 Type-C ports counted.
Total USB-C ports (including headers)
3
This motherboard has 3 USB-C ports (including headers), which is more than 84.7% of motherboards and equal to 10.9% of motherboards.
N. of USB 3.2 Gen2x2 ports (USB-C)
0
This motherboard has 0 USB 3.2 Gen2x2 ports (USB-C), which is fewer than 18% of motherboards and equal to 82% of motherboards.
header only excluded.
Show more
What reviewers say
LAN speed
2.5 Gbps
This motherboard supports LAN speeds up to 2.5 Gbps, which is higher than that of 49% of motherboards and equal to that of 41.4% of motherboards.
dual 2.5GbE ports
LAN controller
Intel I225-V
This motherboard has a Intel I225-V LAN controller, which is faster than 90.1% of Motherboards and equal to 4.2% of Motherboards.
N. of RJ45 ports
2
This motherboard has 2 RJ45 ports, which is more than 85.6% of motherboards and equal to 13.3% of motherboards.
Wi-Fi connectivity
yes
This motherboard supports Wi-Fi connectivity. 50% of motherboards support this feature.
Wi-Fi version
Wi-Fi 6E (802.11ax)
This motherboard uses Wi-Fi 6E (802.11ax), which is newer than 71.5% of Motherboards and the same as 16.7% of Motherboards.
Show more
What reviewers say
Audio codec
Realtek ALC4082
This motherboard uses Realtek ALC4082, which is higher-end than 96.9% of Motherboards and the same as 3% of Motherboards.
with ESS DAC.
Audio channels
7.1
This motherboard offers 7.1 audio channels, which is more than 4.7% of motherboards and equal to 95.3% of motherboards.
Audio SNR
120 dB
This motherboard has an audio SNR of 120 dB, which is higher than that of 55.6% of motherboards and equal to that of 41% of motherboards.
Headphone amp support
yes
This motherboard supports a headphone amp. 41.2% of motherboards support this feature.
N. of 3.5mm audio jacks
5
This motherboard has 5 3.5mm audio jacks, which is more than 50.6% of motherboards and equal to 36.3% of motherboards.
Show more
VRM phases
22
This motherboard has 22 VRM phases, which is more than 96.4% of motherboards and equal to 0.3% of motherboards.
N. of CPU power connectors
2
This motherboard has 2 CPU power connectors, which is more than 54.9% of motherboards and equal to 44.8% of motherboards.
N. of fan headers
8
This motherboard has 8 fan headers, which is more than 82.2% of motherboards and equal to 15% of motherboards.
Pump header
yes
This motherboard has a pump header. 22.1% of motherboards include this feature.
Pump header max current
3 A
This motherboard supports up to 3 A on the pump header, which is higher than that of 77.8% of motherboards and equal to that of 22.2% of motherboards.
Show more
What reviewers say

MSI MEG Z690 Ace vs the average motherboard

246810TotalPlatformMemoryStorageExpansionPortsNetworkAudioPower & Cooling
  • 3 more M.2 sockets
    This motherboard has more M.2 sockets than the average motherboard (5 vs 2). The average motherboard has 2 M.2 socket/s.
    5 vs 2
  • 6 more USB 3.2 Gen2 ports
    This motherboard has more USB 3.2 Gen2 ports than the average motherboard (7 vs 1). The average motherboard has 1 USB 3.2 Gen2 port/s.
    7 vs 1
  • 2 more PCIe 5.0x16 slots
    This motherboard has more PCIe 5.0x16 slots than the average motherboard (2 vs 0). The average motherboard has 0 PCIe 5.0x16 slot/s.
    2 vs 0
  • More modern memory type
    This motherboard uses a more modern memory type than the average motherboard (DDR5 vs DDR4).
    DDR5 vs DDR4
  • 1 more RJ45 ports
    This motherboard has more RJ45 ports than the average motherboard (2 vs 1). The average motherboard has 1 RJ45 port/s.
    2 vs 1
  • More capable onboard audio
    This motherboard has a higher-end audio codec than the average motherboard (Realtek ALC4082 vs Realtek ALC897).
    with ESS DAC.
    Realtek ALC4082 vs Realtek ALC897
  • More capable LAN controller
    This motherboard has a faster LAN controller than the average motherboard (Intel I225-V vs Killer + Intel + Realtek).
    Intel I225-V vs Killer + Intel + Realtek
  • More VRM phases
    This motherboard has more VRM phases than the average motherboard (22 vs 10). The average motherboard has 10 VRM phase/s.
    22 vs 10
  • 6.1% higher review score
    Reviews score
    8.7/ 10
    ✕
    What it is
    Average grade from independent test sites, magazines and video reviewers, 1–10.
    How we count it
    Grades: Each review's own score is converted to 1–10; without one, we grade the review ourselves. Big test sites count more, short reviews half as much as full tests. A video review counts half.
    Score: The average grade is 80% of the review mark; the number of reviews is the other 20% (1 review = 5, the typical number in this category = 8, the most-reviewed model = 10).
    Enough data: With few reviews, the average grade is pulled toward the typical grade of this category. No reviews yet: 7.8 for now.
    Share: Reviews count 20% of the overall score.
    Score distribution
    â–¼
    <55-66-77-88-99-10

    80%

    8.7

    Average grade

    20%

    8.9

    Popularity

    Grades by review (8)
    6 reviews: 3 with a printed score, 3 estimated from the review. 2 video reviews, each counting half as much as a written test. Reviews count 20% of the overall score.
    Ratings from across the web count in the User score, not in this score.
    8.7 vs 8.2
  • More up-to-date socket
    This motherboard uses a more up-to-date socket than the average motherboard (LGA 1700 vs LGA 1151).
    LGA 1,700 vs LGA 1,151
  • Integrated I/O shield
    This motherboard has an integrated I/O shield, while the average motherboard does not. 46.6% of motherboards include an integrated I/O shield.
  • Includes dual BIOS
    This motherboard has dual BIOS, while the average motherboard does not. 22.4% of motherboards include dual BIOS.
  • Includes POST code display
    This motherboard has a POST code display, while the average motherboard does not. 26.7% of motherboards include a POST code display.
  • Rear-panel CMOS reset button
    This motherboard has a rear-panel CMOS reset button, while the average motherboard does not. 26.5% of motherboards include a rear-panel CMOS reset button.
  • More modern memory type
    This motherboard uses a more modern memory type than the average motherboard (DDR5 vs DDR4).
    DDR5 vs DDR4
  • 3 more M.2 sockets
    This motherboard has more M.2 sockets than the average motherboard (5 vs 2). The average motherboard has 2 M.2 socket/s.
    5 vs 2
  • 2 more SATA 3 connectors
    This motherboard has more SATA 3 connectors than the average motherboard (6 vs 4). The average motherboard has 4 SATA 3 connectors.
    some SATA ports disabled with certain M.2 use
    6 vs 4
  • 2 more PCIe 5.0x16 slots
    This motherboard has more PCIe 5.0x16 slots than the average motherboard (2 vs 0). The average motherboard has 0 PCIe 5.0x16 slot/s.
    2 vs 0
  • 1 more PCIe 4.0x16 slots
    This motherboard has more PCIe 4.0x16 slots than the average motherboard (1 vs 0). The average motherboard has 0 PCIe 4.0x16 slot/s.
    runs at x4 mode
    1 vs 0
  • 1 more PCIe x4 slots
    This motherboard has more PCIe x4 slots than the average motherboard (1 vs 0). The average motherboard has 0 PCIe x4 slot/s.
    1 vs 0
  • 6 more USB 3.2 Gen2 ports
    This motherboard has more USB 3.2 Gen2 ports than the average motherboard (7 vs 1). The average motherboard has 1 USB 3.2 Gen2 port/s.
    7 vs 1
  • 2 more rear USB ports
    This motherboard has more rear USB ports than the average motherboard (10 vs 8). The average motherboard has 8 rear USB port/s.
    includes USB4 / Thunderbolt ports.
    10 vs 8
  • 2 more rear USB-C ports
    This motherboard has more rear USB-C ports than the average motherboard (3 vs 1). The average motherboard has 1 rear USB-C port/s.
    Thunderbolt / USB4 Type-C ports counted.
    3 vs 1
  • 5 more total USB connections
    This motherboard has more total USB connections than the average motherboard (20 vs 15). The average motherboard has 15 total USB connections.
    includes USB4 / Thunderbolt ports.
    20 vs 15
  • 1 more USB 3.2 Gen2 USB-C ports
    This motherboard has more USB 3.2 Gen2 USB-C ports than the average motherboard (1 vs 0). The average motherboard has 0 USB 3.2 Gen2 USB-C port/s.
    1 vs 0
  • 2 more total USB-C connections
    This motherboard has more total USB-C connections than the average motherboard (3 vs 1). The average motherboard has 1 total USB-C connections.
    3 vs 1
  • 2 more USB 3.2 Gen2 headers
    This motherboard has more USB 3.2 Gen2 headers than the average motherboard (2 vs 0). The average motherboard has 0 USB 3.2 Gen2 header/s.
    20Gbps Type-C header
    2 vs 0
  • 2 more USB4 40Gbps ports
    This motherboard has more USB4 40Gbps ports than the average motherboard (2 vs 0). The average motherboard has 0 USB4 40Gbps port/s.
    USB4 via Thunderbolt 4.
    2 vs 0
  • 1 more RJ45 ports
    This motherboard has more RJ45 ports than the average motherboard (2 vs 1). The average motherboard has 1 RJ45 port/s.
    2 vs 1
  • More capable LAN controller
    This motherboard has a faster LAN controller than the average motherboard (Intel I225-V vs Killer + Intel + Realtek).
    Intel I225-V vs Killer + Intel + Realtek
  • More recent Wi-Fi standard
    This motherboard has a more recent Wi-Fi standard than the average motherboard (Wi-Fi 6E (802.11ax) vs Wi-Fi 5 (802.11ac)).
    Wi-Fi 6E (802.11ax) vs Wi-Fi 5 (802.11ac)
  • Supports Bluetooth
    This motherboard supports Bluetooth, while the average motherboard does not. 49% of motherboards support Bluetooth.
  • More capable onboard audio
    This motherboard has a higher-end audio codec than the average motherboard (Realtek ALC4082 vs Realtek ALC897).
    with ESS DAC.
    Realtek ALC4082 vs Realtek ALC897
  • 5 dB higher audio SNR
    This motherboard has a higher audio SNR than the average motherboard (120 dB vs 115 dB). The average motherboard has audio SNR of 115 dB.
    120 dB vs 115 dB
  • 2 more 3.5mm audio jacks
    This motherboard has more 3.5mm audio jacks than the average motherboard (5 vs 3). The average motherboard has 3 3.5mm audio jacks.
    5 vs 3
  • More VRM phases
    This motherboard has more VRM phases than the average motherboard (22 vs 10). The average motherboard has 10 VRM phase/s.
    22 vs 10
  • 1 more CPU power connectors
    This motherboard has more CPU power connectors than the average motherboard (2 vs 1). The average motherboard has 1 CPU power connectors.
    2 vs 1
  • 2.5 more fan headers
    This motherboard has more fan headers than the average motherboard (8 vs 5.5). The average motherboard has 5.5 fan header/s.
    8 vs 5.5
  • 1 A higher pump header current limit
    This motherboard has a higher pump header current than the average motherboard (3 A vs 2 A). The average motherboard provides pump header current of 2 A.
    3 A vs 2 A
  • 4 fewer USB 3.2 Gen1 ports
    This motherboard has fewer USB 3.2 Gen1 ports than the average motherboard (0 vs 4). The average motherboard has 4 USB 3.2 Gen1 port/s.
    0 vs 4
  • More basic chipset
    This motherboard uses a more basic chipset than the average motherboard (Intel Z690 vs Intel B860).
    Intel Z690 vs Intel B860
  • 1 fewer DisplayPort outputs
    This motherboard has fewer DisplayPort outputs than the average motherboard (0 vs 1). The average motherboard has 1 DisplayPort outputs.
    0 vs 1
  • 4.2x more expensive
    MSI MEG Z690 Ace is more expensive than the average motherboard (£630 vs £150).
    £630 vs £150
  • 1 fewer PCIe x1 slots
    This motherboard has fewer PCIe x1 slots than the average motherboard (0 vs 1). The average motherboard has 1 PCIe x1 slot/s.
    0 vs 1
  • Slower NVMe storage slots
    This motherboard has slower M.2 slots than the average motherboard (4x PCIe 4x4, 1x PCIe 3x4/SATA vs 1x PCIe 5x4, 2x PCIe 4x4).
    4x PCIe 4.0x4, 1x PCIe 3.0x4/SATA vs 1x PCIe 5.0x4, 2x PCIe 4.0x4
  • Less recent Bluetooth version
    This motherboard has a less recent Bluetooth version than the average motherboard (5.2 vs 5.4).
    5.2 vs 5.4
  • 1 fewer PCIe 3.0x16 slots
    This motherboard has fewer PCIe 3.0x16 slots than the average motherboard (0 vs 1). The average motherboard has 1 PCIe 3.0x16 slot/s.
    0 vs 1
  • 4.2x more expensive
    MSI MEG Z690 Ace is more expensive than the average motherboard (£630 vs £150).
    £630 vs £150
  • More basic chipset
    This motherboard uses a more basic chipset than the average motherboard (Intel Z690 vs Intel B860).
    Intel Z690 vs Intel B860
  • Slower NVMe storage slots
    This motherboard has slower M.2 slots than the average motherboard (4x PCIe 4x4, 1x PCIe 3x4/SATA vs 1x PCIe 5x4, 2x PCIe 4x4).
    4x PCIe 4.0x4, 1x PCIe 3.0x4/SATA vs 1x PCIe 5.0x4, 2x PCIe 4.0x4
  • 1 fewer PCIe x1 slots
    This motherboard has fewer PCIe x1 slots than the average motherboard (0 vs 1). The average motherboard has 1 PCIe x1 slot/s.
    0 vs 1
  • 1 fewer PCIe 3.0x16 slots
    This motherboard has fewer PCIe 3.0x16 slots than the average motherboard (0 vs 1). The average motherboard has 1 PCIe 3.0x16 slot/s.
    0 vs 1
  • 4 fewer USB 3.2 Gen1 ports
    This motherboard has fewer USB 3.2 Gen1 ports than the average motherboard (0 vs 4). The average motherboard has 4 USB 3.2 Gen1 port/s.
    0 vs 4
  • 1 fewer DisplayPort outputs
    This motherboard has fewer DisplayPort outputs than the average motherboard (0 vs 1). The average motherboard has 1 DisplayPort outputs.
    0 vs 1
  • Less recent Bluetooth version
    This motherboard has a less recent Bluetooth version than the average motherboard (5.2 vs 5.4).
    5.2 vs 5.4

Video reviews

Hands-on testing, unboxing, and real-world video evaluations

8.0
Jason Lewis
≈ estimated
26/01/2024
First look · overview and purchase tip
Verdict
MSI MEG Z690 Ace looks outstanding and is a strong deal, though the creator has not tested it yet.
Overview video
Not graded

Expert reviews

In-depth analysis and verdict from leading tech publications

9.0
overclockers.com
≈ estimated
12/03/2022
Lab test · Overclocking board
Verdict
The MSI MEG Z690 ACE is a classy, heavy overclocking board with ample power for a Core i9-12900K at 5.2 GHz, though its DDR5 memory adds latency.
9.0
wccftech.com
≈ estimated
25/11/2021
Hands-on test · Premium board
Verdict
The MSI MEG Z690 ACE is a premium, RGB-free board with the most I/O and storage of the pair, but it lacks a 10GbE port and is expensive.
9.5
pcmasters.de
✓ explicit
31/07/2022
Hardware test · High-end board
Verdict
The MSI MEG Z690 ACE is a gold-accented premium board whose 22 power stages stay cool enough for overclocking any current CPU, but its fifth M.2 slot runs slower.
9.0
hardwareinside.de
≈ estimated
13/05/2022
Hardware test · Connectivity-heavy board
Verdict
The MSI MEG Z690 ACE has a huge rear panel with two Thunderbolt 4 ports, but it is very heavy and has no 10 Gbit/s LAN port.
9.4
profesionalreview.com
✓ explicit
11/01/2022
Full review · Enthusiast board
Verdict
The MSI MEG Z690 ACE delivers close-to-GODLIKE power and I/O without the extras, for much less money, though one M.2 slot is only PCIe 3.0.
8.0
nexthardware.com
✓ explicit
28/01/2022
Hands-on test · Overclocking board
Verdict
The MSI MEG Z690 ACE is a stealthy board with a cool power section, but its lack of 10GbE, Windows 11 Thunderbolt issues and high price hold it back.

Third-party reviews

What customers like about MSI MEG Z690 Ace

  • Premium build quality described as being 'built like a tank' with a rigid, heavy design and 24K gold foil accents.
  • Extensive storage options with five M.2 slots (four PCIe 4.0 and one PCIe 3.0), all featuring dual-sided thermal shielding.
  • Excellent connectivity including dual Thunderbolt 4 ports, two 2.5GbE LAN ports, and WiFi 6E support.
  • Strong VRM performance and power delivery (19+1+2 phases) capable of handling heavy overclocking on flagship CPUs.
  • Comprehensive fan and cooling support with 8 PWM headers and dedicated water pump controls.
  • Niche aesthetic appeal for those preferring a minimalist, 'non-glowy' look without integrated RGB lighting.
  • Useful enthusiast features like dual BIOS with a physical switch, BIOS flashback button, and EZ M.2 clips for tool-less SSD installation.

What customers don't like about MSI MEG Z690 Ace

  • High retail price point (originally around $600), often considered overkill for the average user's needs.
  • Large E-ATX form factor makes it too wide for many standard cases and can cause cable management challenges.
  • Lack of integrated RGB lighting is a downside for users who prefer typical 'gaming' aesthetics.
  • Ethernet and network drivers are often not included in default Windows installation media, requiring a secondary device to download them.
  • Missing a 10GbE LAN port, which some users expect at this premium price tier.
  • Difficulties with product registration as the required CHK number is only located on a small sticker on the side of the 24-pin connector, often hidden after assembly.
  • Reported issues with VRM loadline calibration requiring specific 'socket sense' BIOS settings to prevent excessive CPU heating.

Verdict

The MSI MEG Z690 ACE is a high-end E-ATX motherboard designed for 12th and 13th Gen Intel Core processors on the LGA 1700 socket, featuring a robust 19+1+2 phase power design with 105A Smart Power Stages for extreme overclocking. Its flagship specifications include four DDR5 DIMM slots supporting speeds over 6666MHz (OC), dual PCIe 5.0 x16 slots, and quintuple M.2 connectors (four at Gen4 speeds) shielded by double-sided thermal pads. Main pros include its premium black and gold aesthetic, extensive connectivity with dual Thunderbolt 4 ports (40Gbps), Wi-Fi 6E, and dual 2.5G LAN. However, potential cons include its large E-ATX footprint, high price point, and the notable absence of 10GbE LAN typically found on competing top-tier boards.

Compare MSI MEG Z690 Ace with other products in the Motherboards category

1Product to compare no. 1
VS
2Product to compare no. 2
VS
3Product to compare no. 3 (optional)

Graphic comparison of MSI MEG Z690 Ace and other products in the Motherboards category

No results found
