MSI MAG Z690 Torpedo review: 109 specs compared

Avg. price:~£300CPU socket:LGA 1700Chipset:Intel Z690Form factor:ATX

MSI MAG Z690 Torpedo Review: Compare 109 technical specifications and 1 expert reviews to see how this product ranks in the Motherboards category and whether it is worth buying.

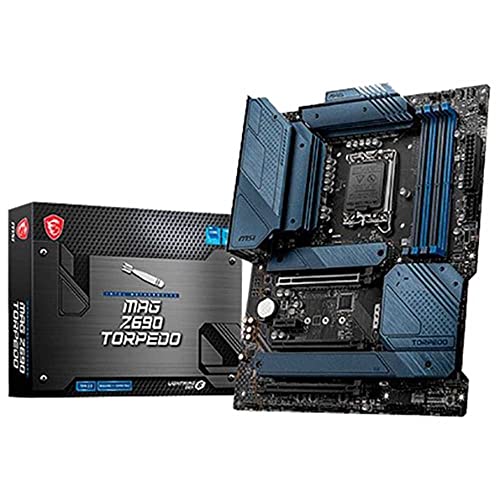

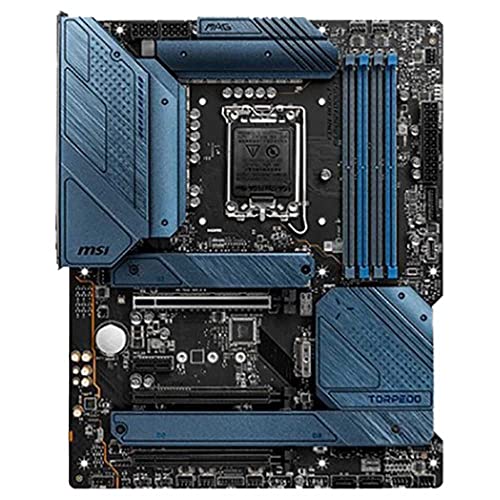

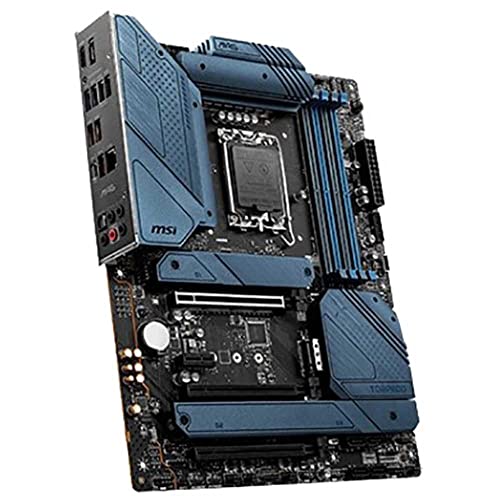

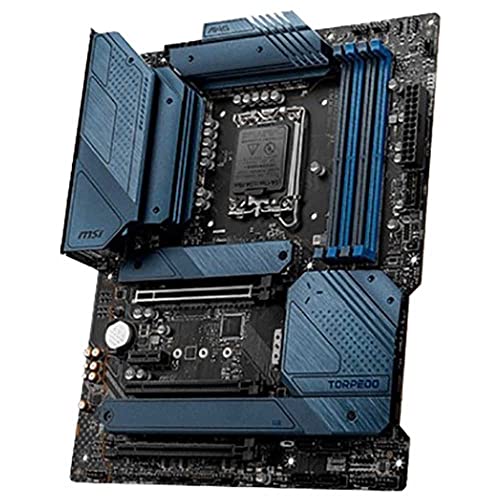

MSI MAG Z690 Torpedo
7.7/10

Overall score

Score
7.7/ 10
✕
What it is
Our main score for this model, 1–10. It combines specs, expert reviews, best-of lists, owners and ratings from across the web.
How we count it
Parts: Technical score 40%, Reviews score 20%, List score 20%, Sentiment score 10%, User score 10%
Marks: Each part gets a mark out of 10. For reviews, lists and owners, a typical model in this category gets about 8 and the best one gets 10.
No data yet: A part with no data shows "?". It counts as the mark of a weaker model in this category (4 in 5 models with data score higher). This way, models with reviews, lists and owners usually come out ahead.
Score distribution
â–¼
<55-66-77-88-99-10
Score components

40%

7.7

Technical score

20%

7.7

Reviews score

20%

?

List scoreNot enough data yet, so we use 7.5, the mark of a weaker model in this category

10%

?

Sentiment scoreNot enough data yet, so we use 7.0, the mark of a weaker model in this category

10%

8.6

User score

â–²Better than 75% of motherboards
8.0

Value for money

Value for money
8.0/ 10
✕
What it is
An indicator that combines the motherboard's overall rating with its cost.
When it matters
When you are looking for a motherboard that offers a strong balance of features, performance, and price.
Score distribution
â–¼
<55-66-77-88-99-10
Score components

70%

7.7

Overall score

30%

8.9

Price

â–²Better than 66%
7.7

Technical score

Technical score
7.7/ 10
✕
What it is
How good the specs are compared with the other models in this category, 1–10.
How we count it
Areas: We rate the specs in each area against the other models in this category.
Weighting: The areas that matter most to buyers count more. The shares are shown under Score components.
Share: The technical score is 40% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10
Score components

19%

8.7

Memory

16%

8.8

Platform

16%

7.6

Storage

15%

6.4

Network

13%

6.2

Ports

8%

5.0

Expansion

8%

9.0

Power & Cooling

5%

9.7

Audio

â–²Better than 78%
7.7

Reviews score

Reviews score
7.7/ 10
✕
What it is
Average grade from independent test sites, magazines and video reviewers, 1–10.
How we count it
Grades: Each review's own score is converted to 1–10; without one, we grade the review ourselves. Big test sites count more, short reviews half as much as full tests. A video review counts half.
Score: The average grade is 80% of the review mark; the number of reviews is the other 20% (1 review = 5, the typical number in this category = 8, the most-reviewed model = 10).
Enough data: With few reviews, the average grade is pulled toward the typical grade of this category. No reviews yet: 7.8 for now.
Share: Reviews count 20% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10

7.7

Mark 7.7 is below the typical mark 8.3 of this category, so it cannot lift the score above the technical score

80%

8.4

Average grade

20%

5.0

Popularity

Grades by review (1)
1 review, its grade estimated from the review text. Reviews count 20% of the overall score.
Ratings from across the web count in the User score, not in this score.
â–¼Worse than 60%
8.6

User score

User score
8.6/ 10
✕
What it is
How happy buyers are with this model, based on ratings from across the web.
How we count it
Enough data: A model needs at least 1 rating from across the web. Without one, it counts as 7.9, the mark of a weaker rated model in this category.
Share: User score counts 10% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10

70%

8.8

Rating

30%

8.1

Popularity

â–²Better than 61%
?

List score

List score
7.5/ 10
✕
What it is
How often independent test sites, magazines and video reviewers put this model in their best-of lists for this category.
How we count it
Points: The model in the most lists of this category gets 10; the others get 8 to 10 in proportion. In no list yet: 7.5. Lists count 20% of the overall score.
Enough data: Every list counts, even a single one. With fewer than 5 best-of lists in the category, this part is left out.
Lists with this model (0)
Not in any best-of list yet, so this part counts as 7.5. Models in a list get 8 to 10.
Not in any best-of list yet
  • msi-mag-z690-torpedo
  • msi-mag-z690-torpedo
  • msi-mag-z690-torpedo
  • msi-mag-z690-torpedo
  • msi-mag-z690-torpedo
msi-mag-z690-torpedo
msi-mag-z690-torpedo
msi-mag-z690-torpedo
msi-mag-z690-torpedo
msi-mag-z690-torpedo
Where to buy
*As an Amazon Associate, we earn from qualifying purchases.
Loading...
Loading category ranking...

Technical Specifications of motherboard MSI MAG Z690 Torpedo

Technical score
Technical score
7.7/ 10
✕
What it is
How good the specs are compared with the other models in this category, 1–10.
How we count it
Areas: We rate the specs in each area against the other models in this category.
Weighting: The areas that matter most to buyers count more. The shares are shown under Score components.
Share: The technical score is 40% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10
Score components:

19%

8.7

Memory

16%

8.8

Platform

16%

7.6

Storage

15%

6.4

Network

13%

6.2

Ports

8%

5.0

Expansion

8%

9.0

Power & Cooling

5%

9.7

Audio

7.7
Reviews score
7.7
User score
8.6
List score
?
Value for money
Value for money
8.0/ 10
✕
What it is
An indicator that combines the motherboard's overall rating with its cost.
When it matters
When you are looking for a motherboard that offers a strong balance of features, performance, and price.
Score distribution
â–¼
<55-66-77-88-99-10
Score components:

70%

7.7

Overall score

30%

8.9

Price

8.0
CPU socket
LGA 1700
This motherboard uses LGA 1700, which is more up-to-date than 54.7% of Motherboards and the same as 22.7% of Motherboards.
CPU platform
Intel
Chipset
Intel Z690
This motherboard uses Intel Z690, which is more capable than 68.4% of Motherboards and as capable as 3.7% of Motherboards.
Form factor
ATX
Integrated graphics support
yes
This motherboard supports integrated graphics. 10.2% of motherboards support this feature.
Show more
DDR memory version
DDR5
This motherboard uses DDR5, which is more modern than 63.8% of Motherboards and the same as 36.2% of Motherboards.
Memory slots
4
This motherboard has 4 Memory slots, which is more than 21.9% of motherboards and equal to 72% of motherboards.
Maximum memory capacity
192 GB
This motherboard supports up to 192 GB of memory, which is more than 72% of motherboards and equal to 10.4% of motherboards.
requires BIOS update for full capacity
Memory channels
2
Maximum RAM speed
5,600 MT/s
This motherboard supports memory speeds up to 5,600 MT/s, which is higher than that of 68.7% of motherboards and equal to that of 2.7% of motherboards.
Show more
N. of M.2 sockets
4
This motherboard has 4 M.2 sockets, which is more than 84.1% of motherboards and equal to 10.7% of motherboards.
M.2 slot interface per slot
2x PCIe 4.0 x4, 1x PCIe 3.0 x4/SATA, 1x PCIe 4.0 x4/SATA
This motherboard offers M.2 slots: 2x PCIe 4.0x4, 1x PCIe 3.0x4/SATA, 1x PCIe 4.0x4/SATA, which is faster than 76.7% of Motherboards and the same as 0.2% of Motherboards.
N. of SATA 3 connectors
6
This motherboard has 6 SATA 3 connectors, which is more than 53.5% of motherboards and equal to 31.2% of motherboards.
Supported RAID levels
0/1/5/10
This motherboard RAID support: 0/1/5/10, which is more flexible than 32.5% of Motherboards and the same as 67.5% of Motherboards.
NVMe RAID support
yes
This motherboard supports NVMe RAID. 40.2% of motherboards support this feature.
Show more
N. of PCIe 5.0 x16 slots
1
This motherboard has 1 PCIe 5.0x16 slots, which is more than 68.4% of motherboards and equal to 26.6% of motherboards.
N. of PCIe 4.0 x16 slots
0
This motherboard has 0 PCIe 4.0x16 slots, which is fewer than 44.8% of motherboards and equal to 55.2% of motherboards.
N. of PCIe 3.0 x16 slots
2
This motherboard has 2 PCIe 3.0x16 slots, which is more than 67.3% of motherboards and equal to 15.4% of motherboards.
runs at x4 mode
PCIe slot electrical configuration
x16
This motherboard splits its PCIe lanes as x16, which is less generous than 81% of Motherboards and the same as 16.1% of Motherboards.
PCIe bifurcation support
?
Show more

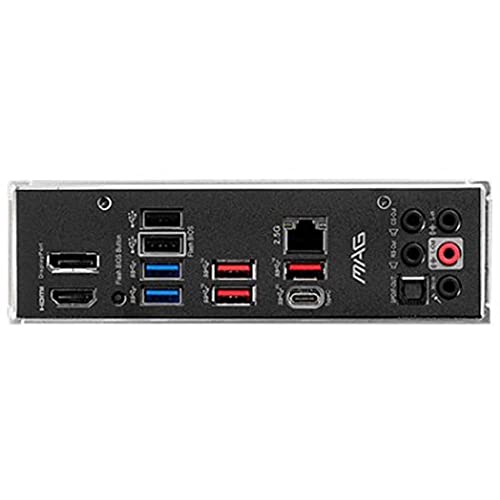

Total USB ports (rear I/O)
8
This motherboard has 8 USB ports (rear I/O), which is more than 40.6% of motherboards and equal to 30.3% of motherboards.
Total USB ports (including headers)
15
This motherboard has 15 USB ports (including headers), which is more than 47.7% of motherboards and equal to 13.5% of motherboards.
Total USB-C ports (rear I/O)
1
This motherboard has 1 USB-C ports (rear I/O), which is more than 35.8% of motherboards and equal to 48.3% of motherboards.
Total USB-C ports (including headers)
2
This motherboard has 2 USB-C ports (including headers), which is more than 51.7% of motherboards and equal to 33% of motherboards.
N. of USB 3.2 Gen2x2 ports (USB-C)
1
This motherboard has 1 USB 3.2 Gen2x2 ports (USB-C), which is more than 82.1% of motherboards and equal to 17.7% of motherboards.
Show more
LAN speed
2.5 Gbps
This motherboard supports LAN speeds up to 2.5 Gbps, which is higher than that of 49% of motherboards and equal to that of 41.4% of motherboards.
LAN controller
Intel I225-V
This motherboard has a Intel I225-V LAN controller, which is faster than 90.1% of Motherboards and equal to 4.2% of Motherboards.
N. of RJ45 ports
1
This motherboard has 1 RJ45 ports, which is fewer than 14.4% of motherboards and equal to 85.6% of motherboards.
Wi-Fi connectivity
no
This motherboard does not support Wi-Fi connectivity. 50.1% of motherboards support this feature.
Wi-Fi version
N/A
Show more
Audio codec
Realtek ALC4080
This motherboard uses Realtek ALC4080, which is higher-end than 90.4% of Motherboards and the same as 6.4% of Motherboards.
Audio channels
7.1
This motherboard offers 7.1 audio channels, which is more than 4.7% of motherboards and equal to 95.3% of motherboards.
Audio SNR
120 dB
This motherboard has an audio SNR of 120 dB, which is higher than that of 55.6% of motherboards and equal to that of 41% of motherboards.
Headphone amp support
yes
This motherboard supports a headphone amp. 41.2% of motherboards support this feature.
supports up to 600Ω.
N. of 3.5mm audio jacks
5
This motherboard has 5 3.5mm audio jacks, which is more than 50.6% of motherboards and equal to 36.3% of motherboards.
Show more
VRM phases
16+1+1
This motherboard has 16+1+1 VRM phases, which is more than 87.3% of motherboards and equal to 1.1% of motherboards.
N. of CPU power connectors
2
This motherboard has 2 CPU power connectors, which is more than 54.9% of motherboards and equal to 44.8% of motherboards.
Dual 8-pin CPU power.
N. of fan headers
8
This motherboard has 8 fan headers, which is more than 82.2% of motherboards and equal to 15% of motherboards.
Pump header
yes
This motherboard has a pump header. 22.1% of motherboards include this feature.
Pump header max current
3 A
This motherboard supports up to 3 A on the pump header, which is higher than that of 77.8% of motherboards and equal to that of 22.2% of motherboards.
Show more

MSI MAG Z690 Torpedo vs the average motherboard

246810TotalPlatformMemoryStorageExpansionPortsNetworkAudioPower & Cooling
  • 2 more M.2 sockets
    This motherboard has more M.2 sockets than the average motherboard (4 vs 2). The average motherboard has 2 M.2 socket/s.
    4 vs 2
  • More modern memory type
    This motherboard uses a more modern memory type than the average motherboard (DDR5 vs DDR4).
    DDR5 vs DDR4
  • More capable LAN controller
    This motherboard has a faster LAN controller than the average motherboard (Intel I225-V vs Killer + Intel + Realtek).
    Intel I225-V vs Killer + Intel + Realtek
  • 2 more USB 3.2 Gen2 ports
    This motherboard has more USB 3.2 Gen2 ports than the average motherboard (3 vs 1). The average motherboard has 1 USB 3.2 Gen2 port/s.
    3 vs 1
  • 1 more PCIe 5.0x16 slots
    This motherboard has more PCIe 5.0x16 slots than the average motherboard (1 vs 0). The average motherboard has 0 PCIe 5.0x16 slot/s.
    1 vs 0
  • More capable onboard audio
    This motherboard has a higher-end audio codec than the average motherboard (Realtek ALC4080 vs Realtek ALC897).
    Realtek ALC4080 vs Realtek ALC897
  • 1 more USB 3.2 Gen2x2 USB-C ports
    This motherboard has more USB 3.2 Gen2x2 USB-C ports than the average motherboard (1 vs 0). The average motherboard has 0 USB 3.2 Gen2x2 USB-C port/s.
    1 vs 0
  • More up-to-date socket
    This motherboard uses a more up-to-date socket than the average motherboard (LGA 1700 vs LGA 1151).
    LGA 1,700 vs LGA 1,151
  • 16.2% higher user score
    User score
    8.6/ 10
    ✕
    What it is
    How happy buyers are with this model, based on ratings from across the web.
    How we count it
    Enough data: A model needs at least 1 rating from across the web. Without one, it counts as 7.9, the mark of a weaker rated model in this category.
    Share: User score counts 10% of the overall score.
    Score distribution
    â–¼
    <55-66-77-88-99-10

    70%

    8.8

    Rating

    30%

    8.1

    Popularity

    8.6 vs 7.4
  • More up-to-date socket
    This motherboard uses a more up-to-date socket than the average motherboard (LGA 1700 vs LGA 1151).
    LGA 1,700 vs LGA 1,151
  • Integrated I/O shield
    This motherboard has an integrated I/O shield, while the average motherboard does not. 46.6% of motherboards include an integrated I/O shield.
  • More modern memory type
    This motherboard uses a more modern memory type than the average motherboard (DDR5 vs DDR4).
    DDR5 vs DDR4
  • 50% more maximum memory capacity
    This motherboard has more maximum memory capacity than the average motherboard (192 GB vs 128 GB). The average motherboard supports 128 GB of memory.
    requires BIOS update for full capacity
    192 GB vs 128 GB
  • 19.2% higher maximum RAM speed
    This motherboard has a higher maximum RAM speed than the average motherboard (5,600 MT/s vs 4,699.5 MT/s). The average motherboard supports RAM speed of 4,699.5 MT/s.
    5,600 MT/s vs 4,699.5 MT/s
  • 2 more M.2 sockets
    This motherboard has more M.2 sockets than the average motherboard (4 vs 2). The average motherboard has 2 M.2 socket/s.
    4 vs 2
  • 2 more SATA 3 connectors
    This motherboard has more SATA 3 connectors than the average motherboard (6 vs 4). The average motherboard has 4 SATA 3 connectors.
    6 vs 4
  • 1 more PCIe 5.0x16 slots
    This motherboard has more PCIe 5.0x16 slots than the average motherboard (1 vs 0). The average motherboard has 0 PCIe 5.0x16 slot/s.
    1 vs 0
  • 2 more USB 3.2 Gen2 ports
    This motherboard has more USB 3.2 Gen2 ports than the average motherboard (3 vs 1). The average motherboard has 1 USB 3.2 Gen2 port/s.
    3 vs 1
  • 1 more USB 3.2 Gen2x2 USB-C ports
    This motherboard has more USB 3.2 Gen2x2 USB-C ports than the average motherboard (1 vs 0). The average motherboard has 0 USB 3.2 Gen2x2 USB-C port/s.
    1 vs 0
  • 1 more USB4 or Thunderbolt headers
    This motherboard has more USB4 or Thunderbolt headers than the average motherboard (1 vs 0). The average motherboard has 0 USB4 or Thunderbolt header/s.
    1 vs 0
  • 1 more USB 3.2 Gen2 headers
    This motherboard has more USB 3.2 Gen2 headers than the average motherboard (1 vs 0). The average motherboard has 0 USB 3.2 Gen2 header/s.
    1 vs 0
  • 1 more total USB-C connections
    This motherboard has more total USB-C connections than the average motherboard (2 vs 1). The average motherboard has 1 total USB-C connections.
    2 vs 1
  • More capable LAN controller
    This motherboard has a faster LAN controller than the average motherboard (Intel I225-V vs Killer + Intel + Realtek).
    Intel I225-V vs Killer + Intel + Realtek
  • More capable onboard audio
    This motherboard has a higher-end audio codec than the average motherboard (Realtek ALC4080 vs Realtek ALC897).
    Realtek ALC4080 vs Realtek ALC897
  • 5 dB higher audio SNR
    This motherboard has a higher audio SNR than the average motherboard (120 dB vs 115 dB). The average motherboard has audio SNR of 115 dB.
    120 dB vs 115 dB
  • 2 more 3.5mm audio jacks
    This motherboard has more 3.5mm audio jacks than the average motherboard (5 vs 3). The average motherboard has 3 3.5mm audio jacks.
    5 vs 3
  • More VRM phases
    This motherboard has more VRM phases than the average motherboard (16+1+1 vs 10). The average motherboard has 10 VRM phase/s.
    16+1+1 vs 10
  • 1 more CPU power connectors
    This motherboard has more CPU power connectors than the average motherboard (2 vs 1). The average motherboard has 1 CPU power connectors.
    Dual 8-pin CPU power.
    2 vs 1
  • 2.5 more fan headers
    This motherboard has more fan headers than the average motherboard (8 vs 5.5). The average motherboard has 5.5 fan header/s.
    8 vs 5.5
  • 1 more ARGB headers
    This motherboard has more ARGB headers than the average motherboard (3 vs 2). The average motherboard has 2 ARGB header/s.
    3 vs 2
  • 1 A higher pump header current limit
    This motherboard has a higher pump header current than the average motherboard (3 A vs 2 A). The average motherboard provides pump header current of 2 A.
    3 A vs 2 A
  • No Wi-Fi connectivity
    This motherboard does not support Wi-Fi connectivity, while the average motherboard does. 50.1% of motherboards support Wi-Fi connectivity.
  • Less generous lane split
    This motherboard splits its PCIe lanes less generously than the average motherboard (x16 vs x16/x0/x4, x8/x8/x4).
    x16 vs x16/x0/x4, x8/x8/x4
  • No Wi-Fi antenna included
    This motherboard does not include a Wi-Fi antenna, while the average motherboard does. 51.1% of motherboards include a Wi-Fi antenna.
  • More basic chipset
    This motherboard uses a more basic chipset than the average motherboard (Intel Z690 vs Intel B860).
    Intel Z690 vs Intel B860
  • 2 fewer USB 3.2 Gen1 ports
    This motherboard has fewer USB 3.2 Gen1 ports than the average motherboard (2 vs 4). The average motherboard has 4 USB 3.2 Gen1 port/s.
    2 vs 4
  • Slower NVMe storage slots
    This motherboard has slower M.2 slots than the average motherboard (2x PCIe 4x4, 1x PCIe 3x4/SATA, 1x PCIe 4x4/SATA vs 1x PCIe 5x4, 2x PCIe 4x4).
    2x PCIe 4.0x4, 1x PCIe 3.0x4/SATA, 1x PCIe 4.0x4/SATA vs 1x PCIe 5.0x4, 2x PCIe 4.0x4
  • 2x more expensive
    MSI MAG Z690 Torpedo is more expensive than the average motherboard (£300 vs £150).
    £300 vs £150
  • 2x more expensive
    MSI MAG Z690 Torpedo is more expensive than the average motherboard (£300 vs £150).
    £300 vs £150
  • More basic chipset
    This motherboard uses a more basic chipset than the average motherboard (Intel Z690 vs Intel B860).
    Intel Z690 vs Intel B860
  • Slower NVMe storage slots
    This motherboard has slower M.2 slots than the average motherboard (2x PCIe 4x4, 1x PCIe 3x4/SATA, 1x PCIe 4x4/SATA vs 1x PCIe 5x4, 2x PCIe 4x4).
    2x PCIe 4.0x4, 1x PCIe 3.0x4/SATA, 1x PCIe 4.0x4/SATA vs 1x PCIe 5.0x4, 2x PCIe 4.0x4
  • Less generous lane split
    This motherboard splits its PCIe lanes less generously than the average motherboard (x16 vs x16/x0/x4, x8/x8/x4).
    x16 vs x16/x0/x4, x8/x8/x4
  • 2 fewer USB 3.2 Gen1 ports
    This motherboard has fewer USB 3.2 Gen1 ports than the average motherboard (2 vs 4). The average motherboard has 4 USB 3.2 Gen1 port/s.
    2 vs 4
  • No Wi-Fi connectivity
    This motherboard does not support Wi-Fi connectivity, while the average motherboard does. 50.1% of motherboards support Wi-Fi connectivity.
  • No Wi-Fi antenna included
    This motherboard does not include a Wi-Fi antenna, while the average motherboard does. 51.1% of motherboards include a Wi-Fi antenna.

Video reviews

Hands-on testing, unboxing, and real-world video evaluations

Shop video

Expert reviews

In-depth analysis and verdict from leading tech publications

8.0
hardwareinside.de
≈ estimated
06/07/2022
Hands-on test · Black Z690 board
Verdict
The MSI MAG Z690 Torpedo is a plain black DDR5 board with a long feature list and a passive chipset cooler, suited to clean builds without RGB.

Third-party reviews

What customers like about MSI MAG Z690 Torpedo

  • Competitive pricing for a DDR5-compatible Z690 motherboard
  • Solid VRM performance and thermal management, keeping temperatures under control even during overclocking
  • User-friendly BIOS that is easy to navigate and facilitates simple overclocking
  • Ample connectivity options, including four M.2 slots and eight fan headers
  • Good build quality with a premium brushed finish and integrated backplate
  • Excellent audio quality featuring the ALC 4080 codec and high SNR

What customers don't like about MSI MAG Z690 Torpedo

  • Lacks integrated Wi-Fi and Bluetooth connectivity
  • No built-in RGB lighting on the board itself (though headers are provided)
  • Initial setup with 13th Gen Intel CPUs can be difficult, requiring a manual BIOS flash via USB
  • Minimalist aesthetic and color scheme (gray/blue) may not appeal to all users
  • Reported difficulty with spring-loaded mounting hardware on specialized versions like the EK X bundle

Verdict

The MSI MAG Z690 Torpedo is a feature-rich ATX motherboard designed for 12th and 13th Gen Intel Core processors on the LGA 1700 socket, featuring a robust 16+1+1 Duet Rail Power System with 70A Smart Power Stages. It supports high-speed DDR5 memory up to 6400+ MHz (OC) and offers a PCIe 5.0 x16 slot for next-generation graphics cards, alongside four M.2 slots (three being Lightning Gen 4) for advanced storage performance. Key pros include its premium thermal solution with extended heatsinks, a high-quality Realtek ALC4080 audio codec, and ultra-fast connectivity via 2.5G LAN and a USB 3.2 Gen 2x2 20Gbps Type-C port. However, it lacks integrated Wi-Fi and Bluetooth, and some users may find its unique black-and-blue military aesthetic polarizing compared to more neutral designs.

Compare MSI MAG Z690 Torpedo with other products in the Motherboards category

1Product to compare no. 1
VS
2Product to compare no. 2
VS
3Product to compare no. 3 (optional)

Graphic comparison of MSI MAG Z690 Torpedo and other products in the Motherboards category

No results found
