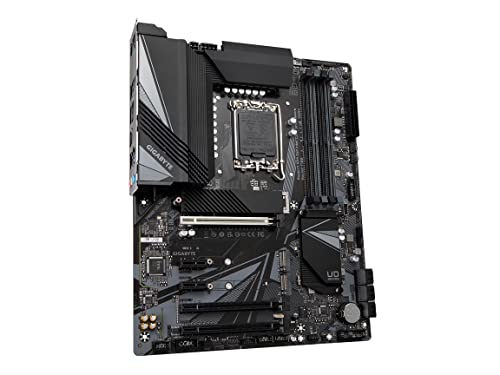

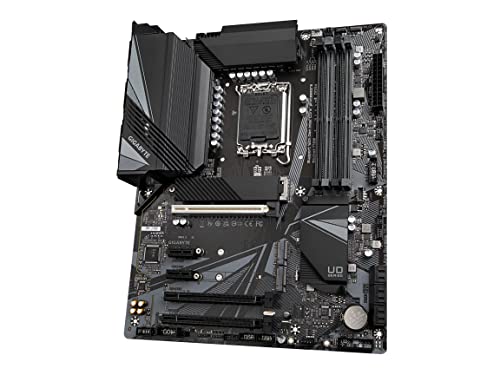

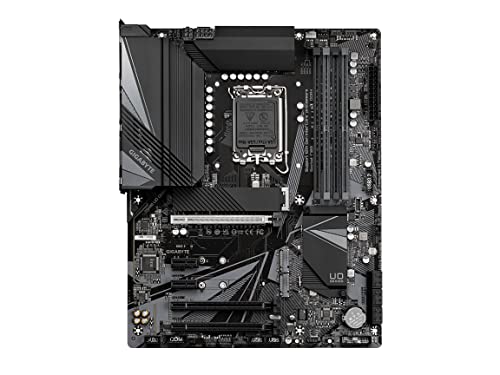

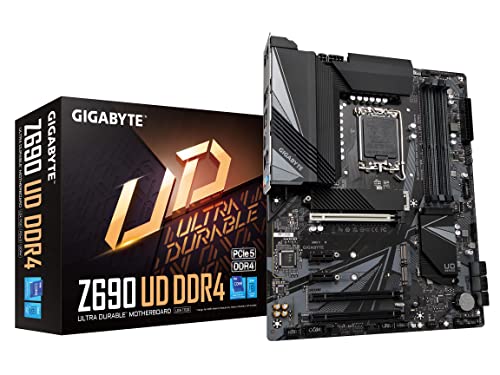

GIGABYTE Z690 UD DDR4 review: 109 specs compared

Avg. price:~£180CPU socket:LGA 1700Chipset:Intel Z690Form factor:ATX

GIGABYTE Z690 UD DDR4 Review: Compare 109 technical specifications and 1 expert reviews to see how this product ranks in the Motherboards category and whether it is worth buying.

GIGABYTE Z690 UD DDR4
7.3/10

Overall score

Score
7.3/ 10
✕
What it is
Our main score for this model, 1–10. It combines specs, expert reviews, best-of lists, owners and ratings from across the web.
How we count it
Parts: Technical score 40%, Reviews score 20%, List score 20%, Sentiment score 10%, User score 10%
Marks: Each part gets a mark out of 10. For reviews, lists and owners, a typical model in this category gets about 8 and the best one gets 10.
No data yet: A part with no data shows "?". It counts as the mark of a weaker model in this category (4 in 5 models with data score higher). This way, models with reviews, lists and owners usually come out ahead.
Score distribution
â–¼
<55-66-77-88-99-10
â–² Better than 63% of models
Score components

40%

7.1

Technical score

20%

7.1

Reviews score

20%

?

List scoreNot enough data yet, so we use 7.5, the mark of a weaker model in this category

10%

?

Sentiment scoreNot enough data yet, so we use 7.0, the mark of a weaker model in this category

10%

8.6

User score

â–²Better than 63% of motherboards
8.0

Value for money

Value for money
8.0/ 10
✕
What it is
An indicator that combines the motherboard's overall rating with its cost.
When it matters
When you are looking for a motherboard that offers a strong balance of features, performance, and price.
Score distribution
â–¼
<55-66-77-88-99-10
â–² Better than 66% of models
Score components

70%

7.3

Overall score

30%

9.6

Price

â–²Better than 66%
7.1

Technical score

Technical score
7.1/ 10
✕
What it is
How good the specs are compared with the other models in this category, 1–10.
How we count it
Areas: We rate the specs in each area against the other models in this category.
Weighting: The areas that matter most to buyers count more. The shares are shown under Score components.
Share: The technical score is 40% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10
â–² Better than 68% of models
Score components

19%

7.0

Memory

16%

8.8

Platform

16%

6.6

Storage

15%

5.9

Network

13%

6.5

Ports

8%

6.4

Expansion

8%

8.6

Power & Cooling

5%

6.2

Audio

â–²Better than 68%
7.1

Reviews score

Reviews score
7.1/ 10
✕
What it is
Average grade from independent test sites, magazines and video reviewers, 1–10.
How we count it
Grades: Each review's own score is converted to 1–10; without one, we grade the review ourselves. Big test sites count more, short reviews half as much as full tests. A video review counts half.
Score: The average grade is 80% of the review mark; the number of reviews is the other 20% (1 review = 5, the typical number in this category = 8, the most-reviewed model = 10).
Enough data: With few reviews, the average grade is pulled toward the typical grade of this category. No reviews yet: 7.8 for now.
Share: Reviews count 20% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10
â–¼ Worse than 66% of models

7.1

Mark 7.8 is below the typical mark 8.3 of this category, so it cannot lift the score above the technical score

80%

8.6

Average grade

20%

5.0

Popularity

Grades by review (1)
1 review, with a printed score. Reviews count 20% of the overall score.
Ratings from across the web count in the User score, not in this score.
â–¼Worse than 66%
8.6

User score

User score
8.6/ 10
✕
What it is
How happy buyers are with this model, based on ratings from across the web.
How we count it
Enough data: A model needs at least 1 rating from across the web. Without one, it counts as 7.9, the mark of a weaker rated model in this category.
Share: User score counts 10% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10
â–² Better than 61% of models

70%

8.4

Rating

30%

9.2

Popularity

â–²Better than 61%
?

List score

List score
7.5/ 10
✕
What it is
How often independent test sites, magazines and video reviewers put this model in their best-of lists for this category.
How we count it
Points: The model in the most lists of this category gets 10; the others get 8 to 10 in proportion. In no list yet: 7.5. Lists count 20% of the overall score.
Enough data: Every list counts, even a single one. With fewer than 5 best-of lists in the category, this part is left out.
Lists with this model (0)
Not in any best-of list yet, so this part counts as 7.5. Models in a list get 8 to 10.
Not in any best-of list yet
  • gigabyte-z690-ud-ddr4
  • gigabyte-z690-ud-ddr4
  • gigabyte-z690-ud-ddr4
  • gigabyte-z690-ud-ddr4
  • gigabyte-z690-ud-ddr4
gigabyte-z690-ud-ddr4
gigabyte-z690-ud-ddr4
gigabyte-z690-ud-ddr4
gigabyte-z690-ud-ddr4
gigabyte-z690-ud-ddr4
Where to buy
*As an Amazon Associate, we earn from qualifying purchases.
Best rankings
Available: ranking among products currently available (including other versions of this product).All: ranking among all products in the database.
Loading category ranking...

Technical Specifications of motherboard GIGABYTE Z690 UD DDR4

Technical score
Technical score
7.1/ 10
✕
What it is
How good the specs are compared with the other models in this category, 1–10.
How we count it
Areas: We rate the specs in each area against the other models in this category.
Weighting: The areas that matter most to buyers count more. The shares are shown under Score components.
Share: The technical score is 40% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10
â–² Better than 68% of models
Score components:

19%

7.0

Memory

16%

8.8

Platform

16%

6.6

Storage

15%

5.9

Network

13%

6.5

Ports

8%

6.4

Expansion

8%

8.6

Power & Cooling

5%

6.2

Audio

7.1
Reviews score
7.1
User score
8.6
List score
?
Value for money
Value for money
8.0/ 10
✕
What it is
An indicator that combines the motherboard's overall rating with its cost.
When it matters
When you are looking for a motherboard that offers a strong balance of features, performance, and price.
Score distribution
â–¼
<55-66-77-88-99-10
â–² Better than 66% of models
Score components:

70%

7.3

Overall score

30%

9.6

Price

8.0
CPU socket
LGA 1700
This motherboard uses LGA 1700, which is more up-to-date than 54.7% of Motherboards and the same as 22.7% of Motherboards.
CPU platform
Intel
Chipset
Intel Z690
This motherboard uses Intel Z690, which is more capable than 68.4% of Motherboards and as capable as 3.7% of Motherboards.
Form factor
ATX
Integrated graphics support
yes
This motherboard supports integrated graphics. 10.2% of motherboards support this feature.
Rear outputs: HDMI + DisplayPort.
Show more
DDR memory version
DDR4
This motherboard uses DDR4, which is more modern than 13.4% of Motherboards and the same as 50.4% of Motherboards.
Memory slots
4
Market range: <2 – >4
This motherboard has 4 Memory slots, which is more than 21.9% of motherboards and equal to 72% of motherboards.
Maximum memory capacity
128 GB
Market range: <32 GB – >256 GB
This motherboard supports up to 128 GB of memory, which is more than 40.1% of motherboards and equal to 31.9% of motherboards.
Memory channels
2
Maximum RAM speed
5,333 MT/s
Market range: <2.1k MT/s – >8k MT/s
This motherboard supports memory speeds up to 5,333 MT/s, which is higher than that of 63% of motherboards and equal to that of 5.1% of motherboards.
Show more
N. of M.2 sockets
3
Market range: <0 – >4
This motherboard has 3 M.2 sockets, which is more than 65.1% of motherboards and equal to 18.9% of motherboards.
M.2 slot interface per slot
3x PCIe 4.0 x4/x2
This motherboard offers M.2 slots: 3x PCIe 4.0x4/x2, which is faster than 72.3% of Motherboards and the same as 0.1% of Motherboards.
N. of SATA 3 connectors
6
Market range: <4 – >8
This motherboard has 6 SATA 3 connectors, which is more than 53.5% of motherboards and equal to 31.2% of motherboards.
Supported RAID levels
0/1/5/10
This motherboard RAID support: 0/1/5/10, which is more flexible than 32.5% of Motherboards and the same as 67.5% of Motherboards.
NVMe RAID support
yes
This motherboard supports NVMe RAID. 40.2% of motherboards support this feature.
Show more
N. of PCIe 5.0 x16 slots
1
Market range: <0 – >1
This motherboard has 1 PCIe 5.0x16 slots, which is more than 68.4% of motherboards and equal to 26.6% of motherboards.
N. of PCIe 4.0 x16 slots
0
Market range: <0 – >1
This motherboard has 0 PCIe 4.0x16 slots, which is fewer than 44.8% of motherboards and equal to 55.2% of motherboards.
N. of PCIe 3.0 x16 slots
2
Market range: <0 – >3
This motherboard has 2 PCIe 3.0x16 slots, which is more than 67.3% of motherboards and equal to 15.4% of motherboards.
runs at x4 mode
PCIe slot electrical configuration
x16/x4/x1/x1/x1
This motherboard splits its PCIe lanes as x16/x4/x1/x1/x1, which is more generous than 87.1% of Motherboards and the same as 0.6% of Motherboards.
PCIe bifurcation support
yes
This motherboard supports PCIe bifurcation. 40.3% of motherboards support this feature.
x8/x8, x4/x4/x4/x4.
Show more
Total USB ports (rear I/O)
10
Market range: <6 – >10
This motherboard has 10 USB ports (rear I/O), which is more than 75.7% of motherboards and equal to 15.4% of motherboards.
Total USB ports (including headers)
17
Market range: <11 – >19
This motherboard has 17 USB ports (including headers), which is more than 71.3% of motherboards and equal to 10.4% of motherboards.
Total USB-C ports (rear I/O)
1
Market range: <0 – >2
This motherboard has 1 USB-C ports (rear I/O), which is more than 35.8% of motherboards and equal to 48.3% of motherboards.
Total USB-C ports (including headers)
2
Market range: <0 – >3
This motherboard has 2 USB-C ports (including headers), which is more than 51.7% of motherboards and equal to 33% of motherboards.
N. of USB 3.2 Gen2x2 ports (USB-C)
1
Market range: <0 – >1
This motherboard has 1 USB 3.2 Gen2x2 ports (USB-C), which is more than 82.1% of motherboards and equal to 17.7% of motherboards.
Show more
LAN speed
2.5 Gbps
Market range: <1 Gbps – >2.5 Gbps
This motherboard supports LAN speeds up to 2.5 Gbps, which is higher than that of 49% of motherboards and equal to that of 41.4% of motherboards.
LAN controller
Killer + Intel + Realtek
This motherboard has a Killer + Intel + Realtek LAN controller, which is slower than 64.6% of Motherboards and equal to 28.7% of Motherboards.
N. of RJ45 ports
1
Market range: <1 – >2
This motherboard has 1 RJ45 ports, which is fewer than 14.4% of motherboards and equal to 85.6% of motherboards.
Wi-Fi connectivity
no
This motherboard does not support Wi-Fi connectivity. 50.1% of motherboards support this feature.
Wi-Fi version
N/A
Show more
Audio codec
Realtek ALC897
This motherboard uses Realtek ALC897, which is higher-end than 20.2% of Motherboards and the same as 29.9% of Motherboards.
Audio channels
7.1
This motherboard offers 7.1 audio channels, which is more than 4.7% of motherboards and equal to 95.3% of motherboards.
surround needs jack retasking.
Audio SNR
97 dB
Market range: <95 dB – >120 dB
This motherboard has an audio SNR of 97 dB, which is lower than that of 65.7% of motherboards and equal to that of 16.9% of motherboards.
Headphone amp support
no
This motherboard does not support a headphone amp. 58.8% of motherboards support this feature.
N. of 3.5mm audio jacks
3
Market range: <2 – >6
This motherboard has 3 3.5mm audio jacks, which is more than 11.3% of motherboards and equal to 39.3% of motherboards.
Show more
VRM phases
16+1+2
This motherboard has 16+1+2 VRM phases, which is more than 89.8% of motherboards and equal to 1.3% of motherboards.
N. of CPU power connectors
2
Market range: <1 – >2
This motherboard has 2 CPU power connectors, which is more than 54.9% of motherboards and equal to 44.8% of motherboards.
N. of fan headers
6
Market range: <3 – >8
This motherboard has 6 fan headers, which is more than 50% of motherboards and equal to 22.3% of motherboards.
Pump header
yes
This motherboard has a pump header. 22.1% of motherboards include this feature.
Pump header max current
2 A
Market range: <0 A – >3 A
This motherboard supports up to 2 A on the pump header, which is higher than that of 45.1% of motherboards and equal to that of 32.6% of motherboards.
Show more

GIGABYTE Z690 UD DDR4 vs the average motherboard

246810TotalPlatformMemoryStorageExpansionPortsNetworkAudioPower & Cooling
  • 1 more PCIe 5.0x16 slots
    This motherboard has more PCIe 5.0x16 slots than the average motherboard (1 vs 0). The average motherboard has 0 PCIe 5.0x16 slot/s.
    1 vs 0
  • 1 more USB 3.2 Gen2x2 USB-C ports
    This motherboard has more USB 3.2 Gen2x2 USB-C ports than the average motherboard (1 vs 0). The average motherboard has 0 USB 3.2 Gen2x2 USB-C port/s.
    1 vs 0
  • More up-to-date socket
    This motherboard uses a more up-to-date socket than the average motherboard (LGA 1700 vs LGA 1151).
    LGA 1,700 vs LGA 1,151
  • 2 more rear USB ports
    This motherboard has more rear USB ports than the average motherboard (10 vs 8). The average motherboard has 8 rear USB port/s.
    10 vs 8
  • 1 more M.2 sockets
    This motherboard has more M.2 sockets than the average motherboard (3 vs 2). The average motherboard has 2 M.2 socket/s.
    3 vs 2
  • More VRM phases
    This motherboard has more VRM phases than the average motherboard (16+1+2 vs 10). The average motherboard has 10 VRM phase/s.
    16+1+2 vs 10
  • 1 more CPU power connectors
    This motherboard has more CPU power connectors than the average motherboard (2 vs 1). The average motherboard has 1 CPU power connectors.
    2 vs 1
  • Integrated I/O shield
    This motherboard has an integrated I/O shield, while the average motherboard does not. 46.6% of motherboards include an integrated I/O shield.
  • 16.2% higher user score
    User score
    8.6/ 10
    ✕
    What it is
    How happy buyers are with this model, based on ratings from across the web.
    How we count it
    Enough data: A model needs at least 1 rating from across the web. Without one, it counts as 7.9, the mark of a weaker rated model in this category.
    Share: User score counts 10% of the overall score.
    Score distribution
    â–¼
    <55-66-77-88-99-10
    â–² Better than 61% of models

    70%

    8.4

    Rating

    30%

    9.2

    Popularity

    8.6 vs 7.4
  • More up-to-date socket
    This motherboard uses a more up-to-date socket than the average motherboard (LGA 1700 vs LGA 1151).
    LGA 1,700 vs LGA 1,151
  • Integrated I/O shield
    This motherboard has an integrated I/O shield, while the average motherboard does not. 46.6% of motherboards include an integrated I/O shield.
  • 13.5% higher maximum RAM speed
    This motherboard has a higher maximum RAM speed than the average motherboard (5,333 MT/s vs 4,699.5 MT/s). The average motherboard supports RAM speed of 4,699.5 MT/s.
    5,333 MT/s vs 4,699.5 MT/s
  • 1 more M.2 sockets
    This motherboard has more M.2 sockets than the average motherboard (3 vs 2). The average motherboard has 2 M.2 socket/s.
    3 vs 2
  • 2 more SATA 3 connectors
    This motherboard has more SATA 3 connectors than the average motherboard (6 vs 4). The average motherboard has 4 SATA 3 connectors.
    6 vs 4
  • 1 more PCIe 5.0x16 slots
    This motherboard has more PCIe 5.0x16 slots than the average motherboard (1 vs 0). The average motherboard has 0 PCIe 5.0x16 slot/s.
    1 vs 0
  • 1 more PCIe x4 slots
    This motherboard has more PCIe x4 slots than the average motherboard (1 vs 0). The average motherboard has 0 PCIe x4 slot/s.
    1 vs 0
  • More generous lane split
    This motherboard splits its PCIe lanes more generously than the average motherboard (x16/x4/x1/x1/x1 vs x16/x0/x4, x8/x8/x4).
    x16/x4/x1/x1/x1 vs x16/x0/x4, x8/x8/x4
  • 1 more PCIe x1 slots
    This motherboard has more PCIe x1 slots than the average motherboard (2 vs 1). The average motherboard has 1 PCIe x1 slot/s.
    2 vs 1
  • 1 more USB 3.2 Gen2x2 USB-C ports
    This motherboard has more USB 3.2 Gen2x2 USB-C ports than the average motherboard (1 vs 0). The average motherboard has 0 USB 3.2 Gen2x2 USB-C port/s.
    1 vs 0
  • 2 more rear USB ports
    This motherboard has more rear USB ports than the average motherboard (10 vs 8). The average motherboard has 8 rear USB port/s.
    10 vs 8
  • 2 more total USB connections
    This motherboard has more total USB connections than the average motherboard (17 vs 15). The average motherboard has 15 total USB connections.
    17 vs 15
  • 2 more USB4 or Thunderbolt headers
    This motherboard has more USB4 or Thunderbolt headers than the average motherboard (2 vs 0). The average motherboard has 0 USB4 or Thunderbolt header/s.
    two internal headers
    2 vs 0
  • 1 more total USB-C connections
    This motherboard has more total USB-C connections than the average motherboard (2 vs 1). The average motherboard has 1 total USB-C connections.
    2 vs 1
  • More VRM phases
    This motherboard has more VRM phases than the average motherboard (16+1+2 vs 10). The average motherboard has 10 VRM phase/s.
    16+1+2 vs 10
  • 1 more CPU power connectors
    This motherboard has more CPU power connectors than the average motherboard (2 vs 1). The average motherboard has 1 CPU power connectors.
    2 vs 1
  • 1 more RGB headers
    This motherboard has more RGB headers than the average motherboard (2 vs 1). The average motherboard has 1 RGB header/s.
    2 vs 1
  • No Wi-Fi connectivity
    This motherboard does not support Wi-Fi connectivity, while the average motherboard does. 50.1% of motherboards support Wi-Fi connectivity.
  • No Wi-Fi antenna included
    This motherboard does not include a Wi-Fi antenna, while the average motherboard does. 51.1% of motherboards include a Wi-Fi antenna.
  • More basic chipset
    This motherboard uses a more basic chipset than the average motherboard (Intel Z690 vs Intel B860).
    Intel Z690 vs Intel B860
  • 18 dB lower audio SNR
    This motherboard has a lower audio SNR than the average motherboard (97 dB vs 115 dB). The average motherboard has audio SNR of 115 dB.
    97 dB vs 115 dB
  • No headphone amp support
    This motherboard does not support a headphone amp, while the average motherboard does. 58.8% of motherboards support a headphone amp.
  • Slower NVMe storage slots
    This motherboard has slower M.2 slots than the average motherboard (3x PCIe 4x4/x2 vs 1x PCIe 5x4, 2x PCIe 4x4).
    3x PCIe 4.0x4/x2 vs 1x PCIe 5.0x4, 2x PCIe 4.0x4
  • No optical S/PDIF out
    This motherboard does not have optical S/PDIF out, while the average motherboard does. 55.4% of motherboards include optical S/PDIF out.
  • More basic chipset
    This motherboard uses a more basic chipset than the average motherboard (Intel Z690 vs Intel B860).
    Intel Z690 vs Intel B860
  • Slower NVMe storage slots
    This motherboard has slower M.2 slots than the average motherboard (3x PCIe 4x4/x2 vs 1x PCIe 5x4, 2x PCIe 4x4).
    3x PCIe 4.0x4/x2 vs 1x PCIe 5.0x4, 2x PCIe 4.0x4
  • No Wi-Fi connectivity
    This motherboard does not support Wi-Fi connectivity, while the average motherboard does. 50.1% of motherboards support Wi-Fi connectivity.
  • No Wi-Fi antenna included
    This motherboard does not include a Wi-Fi antenna, while the average motherboard does. 51.1% of motherboards include a Wi-Fi antenna.
  • 18 dB lower audio SNR
    This motherboard has a lower audio SNR than the average motherboard (97 dB vs 115 dB). The average motherboard has audio SNR of 115 dB.
    97 dB vs 115 dB
  • No headphone amp support
    This motherboard does not support a headphone amp, while the average motherboard does. 58.8% of motherboards support a headphone amp.
  • No optical S/PDIF out
    This motherboard does not have optical S/PDIF out, while the average motherboard does. 55.4% of motherboards include optical S/PDIF out.

Expert reviews

In-depth analysis and verdict from leading tech publications

9.4
geeknetic.es
✓ explicit
26/01/2022
Test review · Budget Z690 board
Verdict
The GIGABYTE Z690 UD DDR4 is a budget Z690 board with a PCIe 5.0 graphics slot, suited to upgraders who already own DDR4 memory.

Third-party reviews

What customers like about GIGABYTE Z690 UD DDR4

  • Excellent value for a Z690 chipset board, often priced lower than some B660 alternatives
  • Solid build quality with substantial VRM heatsinks and thermal design
  • Ample connectivity options, including multiple M.2 slots (four NVMe Gen4), 2.5GbE LAN, and numerous USB ports
  • Includes Q-Flash Plus button, which allows BIOS updates without needing a CPU or RAM installed
  • Strong power delivery capable of handling high-end CPUs like the i9-12900K
  • Sober, functional aesthetic that fits well in most builds without excessive RGB

What customers don't like about GIGABYTE Z690 UD DDR4

  • Frequent BIOS stability issues out of the box; many users reported M.2 drives were not recognized until a BIOS update
  • Fiddly Q-Flash Plus process that often requires a specific USB 2.0 drive and manual file renaming to work reliably
  • Weak memory overclocking support; some users struggled to maintain stable XMP profiles above 3200MHz
  • Difficult installation in compact cases due to tight component spacing and 'awkward' placement of some headers
  • Intermittent reports of USB disconnects and audio stuttering during high CPU/GPU load
  • Poor technical support response and 'clunky' BIOS interface compared to competitors

Verdict

The Gigabyte Z690 UD DDR4 is an ATX motherboard designed for 12th, 13th, and 14th Gen Intel Core processors, featuring a robust 16+1+2 phase digital VRM with 60A power stages and tantalum polymer capacitors for enhanced stability. Key technical highlights include a PCIe 5.0 x16 slot, triple NVMe PCIe 4.0 x4 M.2 connectors, and support for up to 128GB of dual-channel DDR4 memory with overclocked speeds reaching 5333 MHz. Main pros include its high-speed connectivity via 2.5GbE LAN and a rear USB 3.2 Gen 2x2 Type-C port (20Gbps), alongside user-friendly features like Q-Flash Plus for BIOS updates without a CPU and efficient thermal management with fully covered heatsinks. Cons involve its reliance on the older DDR4 standard rather than DDR5, a somewhat basic audio codec (Realtek 7.1-channel), and a lack of integrated Wi-Fi on the base model.

Compare GIGABYTE Z690 UD DDR4 with other products in the Motherboards category

1Product to compare no. 1
VS
2Product to compare no. 2
VS
3Product to compare no. 3 (optional)

Graphic comparison of GIGABYTE Z690 UD DDR4 and other products in the Motherboards category

No results found
