ASUS ROG Strix GeForce GTX 1070 OC Review | 118 Data compared

The ASUS ROG Strix GeForce GTX 1070 8G Gaming is identified as a top-performing, cool-running GPU featuring the DirectCU III cooling system, which keeps the card under 64°C even under heavy overclocking. It boasts superior performance over the Founders Edition, robust AURA RGB lighting, and unique FanConnect headers for enhanced system cooling, making it an excellent choice for high-end gaming. However, the card's significant size (29.8 cm length) requires ample case space, and the fan noise becomes noticeable when operating above 60% capacity, say LaptopMedia. Despite trailing slightly behind some competitors in raw performance and featuring a primarily plastic shroud, its impressive, quiet, and cool operation under normal loads makes it a standout option.

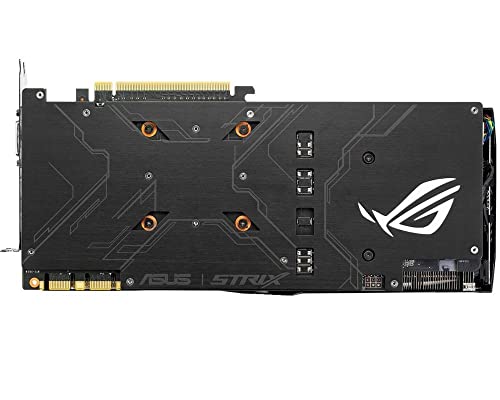

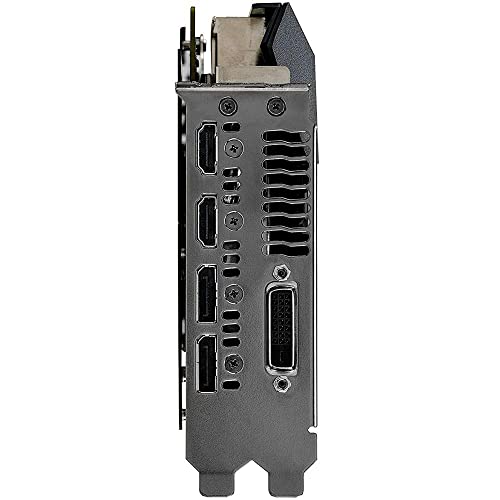

The ASUS ROG Strix GeForce GTX 1070 OC is a highly powerful Pascal-architecture graphics card factory overclocked at 1633 MHz, delivering performance that surpasses the previous generation's top-tier GTX 980Ti. Its premium design inherits classic Republic of Gamers (ROG) aesthetics, featuring a metallic backplate and fully customizable, vibrant RGB lighting managed through the functional GPU Tweak II desktop application. For connectivity, the large-format card is well-equipped with two HDMI 2.0 ports, two DisplayPorts, and a single DVI-D port. A major advantage of this card is its mind-blowing 4K gaming performance at max settings, combined with a quiet DirectCU triple-wing-blade fan cooling design that runs surprisingly silently during standard operations. However, the prominent downside is its thermal output; due to the aggressive out-of-the-box overclock, the card runs hotter than expected, reaching temperatures around 45°C at idle and up to 75°C under heavy load. While cranking the fan speed to the maximum successfully tones down these temperatures, doing so creates a much noisier gaming environment.

The ASUS ROG Strix GTX 1070 O8G Gaming is described as an exceptional, high-performance card featuring the DirectCU III cooling solution, which offers whisper-quiet operation and extensive overclocking headroom for performance rivaling reference GTX 1080 models. Aesthetics are enhanced with Aura RGB lighting, while the card's premium design justifies its higher price tag. However, the review notes the card carries a higher price point than standard 1070s and possesses large physical dimensions, requiring ample case clearance. Additionally, high demand can lead to potential stock issues, though the overall performance justifies the cost.

The ASUS ROG Strix GeForce GTX 1070 (non-overclocked edition) is a premium, all-black card featuring customizable RGB lighting, a rigid backplate, and the DirectCU III triple-fan cooler. While it maintains the standard NVIDIA Founders Edition clocks, it boasts superior thermals and structural integrity, utilizing a single 8-pin power connector. The card’s design includes specialized, GPU-controlled fan headers for improved, direct system cooling. Performance-wise, it offers excellent overclocking headroom, allowing for a stable 2112MHz boost clock and significant memory overclocking. It features efficient, near-silent cooling (operating under 72°C even while overclocked). The main, specific pros are its solid build, low noise levels, and great, user-controllable thermals. Conversely, the primary cons are its premium price (RM2499) and loud fans only when manually set to 100% speed.

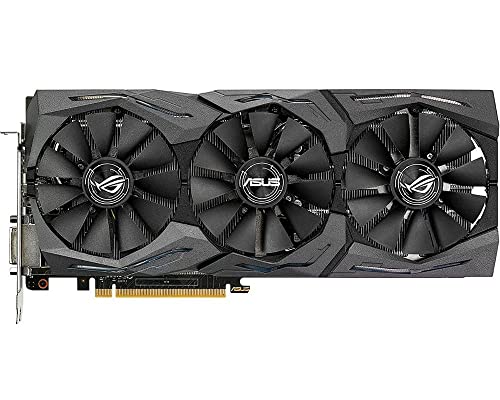

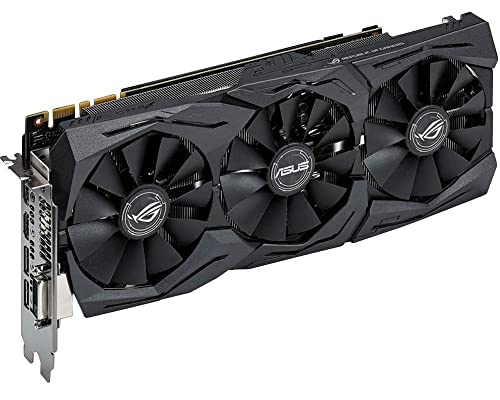

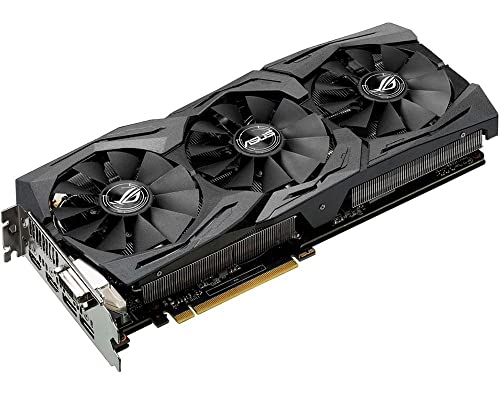

The Vortez ASUS STRIX GTX 1070 Review highlights a highly capable graphics card that distinguishes itself through an array of premium features and custom engineering. Built on NVIDIA's Pascal architecture, the card arrives with a significant 10% factory overclock on the GPU core, providing a strong frame-rate boost across DX11 and DX12 benchmarks. A key highlight of the design is the triple-fan DirectCU III cooling system paired with an automated Auto-Extreme construction process, which keeps hardware temperatures low and operates completely silently during light workloads. Beyond raw performance, the card offers great external utility by including dual VR-friendly HDMI 2.0 ports and integrated twin fan headers at the edge of the PCB to manage chassis airflow dynamically. The evaluation outlines a definitive list of pros and a solitary core con for this specific model. Pros include its attractive aesthetic design, highly customizable Aura RGB LED lighting, excellent out-of-the-box performance, and a generous 3-year warranty. Furthermore, the custom 8 phase power delivery and Super Alloy Power II components ensure strong manual overclocking headroom, pushing both core and memory speeds well past...

The Asus Strix GTX 1070 and GTX 1080 O8G graphics cards are highly engineered, triple-fan factory-overclocked units featuring Aura RGB lighting, premium backplates, and a revised port selection that drops one DisplayPort for a second HDMI 2.0 connection to benefit VR setups. In single-card scenarios, the main pros include near-maximum core overclocks out of the box (reaching 1975–2025MHz) with exceptionally cool load temperatures hovering in the low 60°C range and ultra-quiet acoustics. However, the cons lie in their restricted overclocking head-room, as Nvidia locks down Pascal over-volting, meaning users can only extract a further 50–75MHz from the core before hitting stability issues. This strict limit minimizes the performance value of premium cards over cheaper, standard models. When tested in dual-GPU configurations, SLI performance scales best at 4K resolution, where a GTX 1070 SLI setup consistently beats out the more expensive single-chip Titan X Pascal in titles like Crysis 3 and Rise of the Tomb Raider. The GTX 1080 SLI pushes even further, delivering up to a 57% performance increase over the Titan X. Conversely, the downsides of SLI are substantial:...

The ASUS ROG Strix GeForce GTX 1070 8G Gaming is characterized by its superior DirectCU III cooling, maintaining a 64°C maximum temperature while operating quietly, along with a 6% out-of-the-box performance increase over the Founders Edition. Key features include 4-pin FanConnect headers for thermal-based fan control and customizable Aura RGB lighting, though the card has a premium price and large dimensions (29.8 x 13.4 x 4 cm) requiring significant case space. While offering high-end performance, the card is slightly slower (2.8%) in benchmarks compared to the MSI GTX 1070 Gaming X and uses plastic rather than metal for the shroud. Additionally, memory overclocking peaks at 2177 MHz, with higher settings causing performance degradation.

The Asus ROG Strix GeForce GTX 1070 is a premium, heavy-weight graphics card weighing 1048 grams and measuring 30cm in length, utilizing a dual-slot design with an oversized 6 -phase power supply and 8GB of Samsung GDDR5 memory. It handles temperatures exceptionally well, keeping the GPU under a cool 62°C (144°F) during testing while maintaining a gaming boost clock rate that averages 1946 MHz. Acoustic performance sits in the middle of its class at 37 dB(A) under load, though its balanced frequency spectrum and highly efficient voltage converters result in a subjectively quieter profile with minimal perceivable high-frequency electrical whining. Additionally, the display array features two HDMI 2.0b ports alongside two DisplayPort 1.4-capable interfaces, making it highly accommodating for virtual reality headsets like the Oculus Rift and HTC Vive. The graphics card stands out for its quiet operation, high performance, well-balanced cooling solution, overall efficiency, and VR-friendly outputs. However, it does feature several drawbacks, notably a high premium price point that critics argue positions it too close to the cost of a faster GTX 1080. Visually, the anthracite matte plastic...

The ASUS ROG GTX 1080 and GTX 1070 STRIX OC graphics cards are highly competitive, top-tier custom Pascal-based GPUs that outperform most of their rivals out of the box. Built using an automated fabrication process and high-grade Super Alloy Power II components, both cards feature an efficient matte-black, triple-fan DirectCU heatsink design with customizable RGB Aura lighting. A standout innovation is the inclusion of two onboard 4-pin PWM fan headers, which allow case fans to spin up in parallel with the GPU core temperatures to optimize overall system cooling. In terms of raw performance, the GTX 1080 variant achieves an impressive 1936MHz factory boost speed, making it the fastest tested card in its class. Meanwhile, the GTX 1070 variant shines in value by matching the thermal performance of much bulkier competitors, like the Zotac AMP! Extreme, while keeping a smaller physical footprint. Pros and Cons Pro: Excellent value with aggressive pricing that undercuts premium rivals like MSI's Gaming Z and Zotac's AMP! Extreme. Pro: Superior overclocking headroom thanks to an extended 120% Power Limit slider that pushed the GTX 1070...

The Asus GeForce GTX 1070 Strix Review highlights the card as an excellent performer for 1440p and VR gaming. Pros include an impressive factory overclock that delivers roughly 11 percent faster performance than a standard GTX 980 Ti, excellent power efficiency drawing 70W less than reference Maxwell hardware, and an exceptionally quiet DirectCU III triple-fan cooler that yields a low delta T of 39°C. Enthusiasts will also benefit from high-quality build elements like the customizable RGB lighting, dual HDMI outputs tailored for VR configurations, and unique FanConnect II headers to control case fans directly via GPU temperatures. However, the card does face several performance and ecosystem bottlenecks. Cons center around its premium price point, which diminishes its pure "bang for buck" value when compared to standard GTX 1070 variants, especially since it lacked an out-of-the-box memory overclock or extended warranty. In terms of performance limitations, the slower GDDR5 memory architecture bottlenecks the core at 4K resolutions, causing frame rates to drop below 25fps on ultra settings in demanding titles like Fallout 4 and The Division. Furthermore, manual core overclocking is...

purely for a price-to-performance value. Its core overclocking headroom is notably limited since the card ships pre-optimized near its maximum boost potential, meaning users can expect very minimal manual clock gains. Finally, the package falls short due to the lack of a factory memory overclock, the absence of an extended warranty to offset the premium cost, and a clunky, fragmented Asus GPU software suite that severely needs development.
