ASUS H170I-Plus D3 review: 109 specs compared

Avg. price:~£130CPU socket:LGA 1151Chipset:Intel H170Form factor:Mini-ITX

ASUS H170I-Plus D3 Review: Compare 109 technical specifications to see how this product ranks in the Motherboards category and whether it is worth buying.

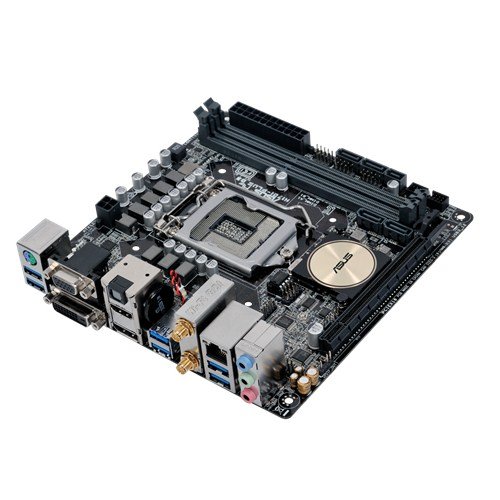

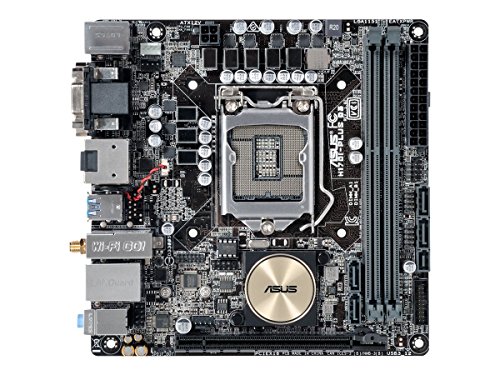

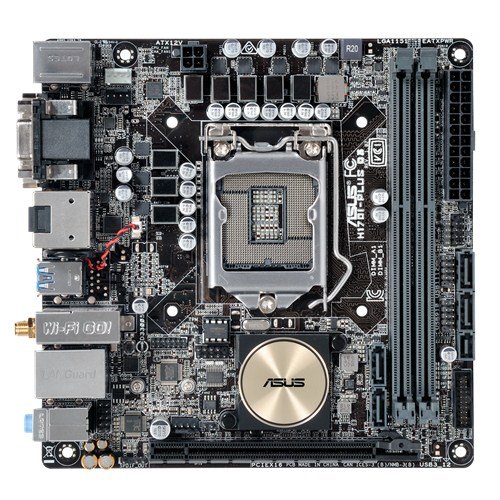

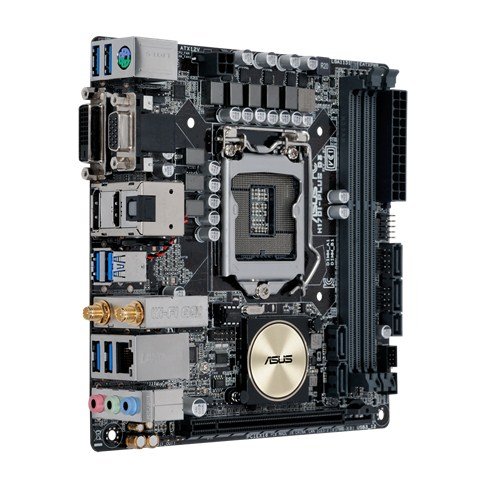

ASUS H170I-Plus D3
5.7/10

Overall score

Score
5.7/ 10
✕
What it is
Our main score for this model, 1–10. It combines specs, expert reviews, best-of lists, owners and ratings from across the web.
How we count it
Parts: Technical score 40%, Reviews score 20%, List score 20%, Sentiment score 10%, User score 10%
Marks: Each part gets a mark out of 10. For reviews, lists and owners, a typical model in this category gets about 8 and the best one gets 10.
No data yet: A part with no data shows "?". It counts as the mark of a weaker model in this category (4 in 5 models with data score higher). This way, models with reviews, lists and owners usually come out ahead.
Score distribution
â–¼
<55-66-77-88-99-10
Score components

40%

3.8

Technical score

20%

?

Reviews scoreNot enough data yet, so we use 7.8, the mark of a weaker model in this category

20%

?

List scoreNot enough data yet, so we use 7.5, the mark of a weaker model in this category

10%

?

Sentiment scoreNot enough data yet, so we use 7.0, the mark of a weaker model in this category

10%

3.8

User score

â–¼Worse than 93% of motherboards
6.9

Value for money

Value for money
6.9/ 10
✕
What it is
An indicator that combines the motherboard's overall rating with its cost.
When it matters
When you are looking for a motherboard that offers a strong balance of features, performance, and price.
Score distribution
â–¼
<55-66-77-88-99-10
Score components

70%

5.7

Overall score

30%

9.8

Price

â–¼Worse than 93%
3.8

Technical score

Technical score
3.8/ 10
✕
What it is
How good the specs are compared with the other models in this category, 1–10.
How we count it
Areas: We rate the specs in each area against the other models in this category.
Weighting: The areas that matter most to buyers count more. The shares are shown under Score components.
Share: The technical score is 40% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10
Score components

19%

2.1

Memory

16%

5.8

Platform

16%

4.0

Storage

15%

4.6

Network

13%

1.9

Ports

8%

2.1

Expansion

8%

5.4

Power & Cooling

5%

6.1

Audio

â–¼Worse than 97%
?

Reviews score

Reviews score
✕
What it is
Average grade from independent test sites, magazines and video reviewers, 1–10.
How we count it
Grades: Each review's own score is converted to 1–10; without one, we grade the review ourselves. Big test sites count more, short reviews half as much as full tests. A video review counts half.
Score: The average grade is 80% of the review mark; the number of reviews is the other 20% (1 review = 5, the typical number in this category = 8, the most-reviewed model = 10).
Enough data: With few reviews, the average grade is pulled toward the typical grade of this category. No reviews yet: 7.8 for now.
Share: Reviews count 20% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10
Grades by review (0)
We have not found an independent test of this model yet. Until we do, its review part counts as 7.8.
Ratings from across the web count in the User score, not in this score.
No expert tests yet
3.8

User score

User score
3.8/ 10
✕
What it is
How happy buyers are with this model, based on ratings from across the web.
How we count it
Enough data: A model needs at least 1 rating from across the web. Without one, it counts as 7.9, the mark of a weaker rated model in this category.
Share: User score counts 10% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10

3.8

Mark 7.8 is below the typical mark 8.4 of this category, so it cannot lift the score above the technical score

70%

8.2

Rating

30%

6.8

Popularity

â–¼Worse than 98%
?

List score

List score
7.5/ 10
✕
What it is
How often independent test sites, magazines and video reviewers put this model in their best-of lists for this category.
How we count it
Points: The model in the most lists of this category gets 10; the others get 8 to 10 in proportion. In no list yet: 7.5. Lists count 20% of the overall score.
Enough data: Every list counts, even a single one. With fewer than 5 best-of lists in the category, this part is left out.
Lists with this model (0)
Not in any best-of list yet, so this part counts as 7.5. Models in a list get 8 to 10.
Not in any best-of list yet
  • asus-h170i-plus-d3
  • asus-h170i-plus-d3
  • asus-h170i-plus-d3
  • asus-h170i-plus-d3
  • asus-h170i-plus-d3
  • asus-h170i-plus-d3
  • asus-h170i-plus-d3
asus-h170i-plus-d3
asus-h170i-plus-d3
asus-h170i-plus-d3
asus-h170i-plus-d3
asus-h170i-plus-d3
asus-h170i-plus-d3
asus-h170i-plus-d3
Where to buy
*As an Amazon Associate, we earn from qualifying purchases.
Best rankings
Available: ranking among products currently available (including other versions of this product).All: ranking among all products in the database.
Loading...
Loading category ranking...

Technical Specifications of motherboard ASUS H170I-Plus D3

Technical score
Technical score
3.8/ 10
✕
What it is
How good the specs are compared with the other models in this category, 1–10.
How we count it
Areas: We rate the specs in each area against the other models in this category.
Weighting: The areas that matter most to buyers count more. The shares are shown under Score components.
Share: The technical score is 40% of the overall score.
Score distribution
â–¼
<55-66-77-88-99-10
Score components:

19%

2.1

Memory

16%

5.8

Platform

16%

4.0

Storage

15%

4.6

Network

13%

1.9

Ports

8%

2.1

Expansion

8%

5.4

Power & Cooling

5%

6.1

Audio

3.8
Reviews score
7.8
User score
3.8
List score
?
Value for money
Value for money
6.9/ 10
✕
What it is
An indicator that combines the motherboard's overall rating with its cost.
When it matters
When you are looking for a motherboard that offers a strong balance of features, performance, and price.
Score distribution
â–¼
<55-66-77-88-99-10
Score components:

70%

5.7

Overall score

30%

9.8

Price

6.9
CPU socket
LGA 1151
This motherboard uses LGA 1151, which is less up-to-date than 70.7% of Motherboards and the same as 13.7% of Motherboards.
CPU platform
Intel
Chipset
Intel H170
This motherboard uses Intel H170, which is less capable than 95.7% of Motherboards and as capable as 0.6% of Motherboards.
Form factor
Mini-ITX
Integrated graphics support
yes
This motherboard supports integrated graphics. 10.2% of motherboards support this feature.
Show more
DDR memory version
DDR3
This motherboard uses DDR3, which is less modern than 86.9% of Motherboards and the same as 13.2% of Motherboards.
Memory slots
2
This motherboard has 2 Memory slots, which is fewer than 78.1% of motherboards and equal to 21.8% of motherboards.
Maximum memory capacity
32 GB
This motherboard supports up to 32 GB of memory, which is less than 87% of motherboards and equal to 11.1% of motherboards.
Memory channels
2
Maximum RAM speed
1,600 MT/s
This motherboard supports memory speeds up to 1,600 MT/s, which is lower than that of 93.2% of motherboards and equal to that of 6.3% of motherboards.
Show more
N. of M.2 sockets
1
This motherboard has 1 M.2 sockets, which is fewer than 69.5% of motherboards and equal to 18.9% of motherboards.
M.2 slot interface per slot
1x PCIe 3.0 x4/SATA
This motherboard offers M.2 slots: 1x PCIe 3.0x4/SATA, which is slower than 74.3% of Motherboards and the same as 10.4% of Motherboards.
N. of SATA 3 connectors
4
This motherboard has 4 SATA 3 connectors, which is more than 6.1% of motherboards and equal to 46.8% of motherboards.
Supported RAID levels
0/1/5/10
This motherboard RAID support: 0/1/5/10, which is more flexible than 32.5% of Motherboards and the same as 67.5% of Motherboards.
NVMe RAID support
no
This motherboard does not support NVMe RAID. 59.9% of motherboards support this feature.
Show more
N. of PCIe 5.0 x16 slots
0
This motherboard has 0 PCIe 5.0x16 slots, which is fewer than 31.6% of motherboards and equal to 68.4% of motherboards.
N. of PCIe 4.0 x16 slots
0
This motherboard has 0 PCIe 4.0x16 slots, which is fewer than 44.8% of motherboards and equal to 55.2% of motherboards.
N. of PCIe 3.0 x16 slots
1
This motherboard has 1 PCIe 3.0x16 slots, which is more than 40.5% of motherboards and equal to 26.8% of motherboards.
PCIe slot electrical configuration
x16
This motherboard splits its PCIe lanes as x16, which is less generous than 81% of Motherboards and the same as 16.1% of Motherboards.
PCIe bifurcation support
no
This motherboard does not support PCIe bifurcation. 59.8% of motherboards support this feature.
Show more

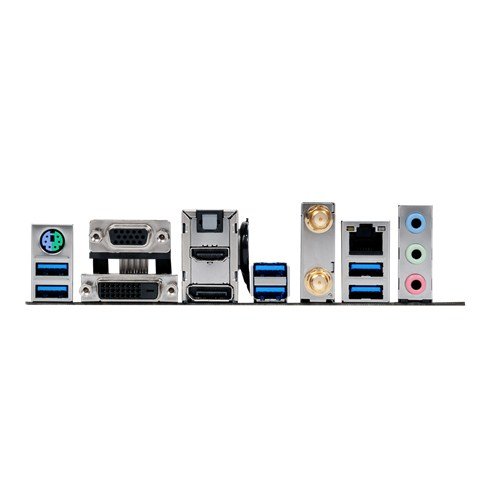

Total USB ports (rear I/O)
6
This motherboard has 6 USB ports (rear I/O), which is fewer than 63.8% of motherboards and equal to 32.8% of motherboards.
Total USB ports (including headers)
12
This motherboard has 12 USB ports (including headers), which is fewer than 72.4% of motherboards and equal to 16.2% of motherboards.
Total USB-C ports (rear I/O)
0
This motherboard has 0 USB-C ports (rear I/O), which is fewer than 64.2% of motherboards and equal to 35.8% of motherboards.
Total USB-C ports (including headers)
0
This motherboard has 0 USB-C ports (including headers), which is fewer than 69.5% of motherboards and equal to 30.5% of motherboards.
N. of USB 3.2 Gen2x2 ports (USB-C)
0
This motherboard has 0 USB 3.2 Gen2x2 ports (USB-C), which is fewer than 18% of motherboards and equal to 82% of motherboards.
Show more
LAN speed
1 Gbps
This motherboard supports LAN speeds up to 1 Gbps, which is lower than that of 51.1% of motherboards and equal to that of 48.9% of motherboards.
LAN controller
Intel I219-V
This motherboard has a Intel I219-V LAN controller, which is faster than 58.2% of Motherboards and equal to 10% of Motherboards.
N. of RJ45 ports
1
This motherboard has 1 RJ45 ports, which is fewer than 14.4% of motherboards and equal to 85.6% of motherboards.
Wi-Fi connectivity
yes
This motherboard supports Wi-Fi connectivity. 50% of motherboards support this feature.
Wi-Fi version
Wi-Fi 5 (802.11ac)
This motherboard uses Wi-Fi 5 (802.11ac), which is newer than 49.8% of Motherboards and the same as 10.4% of Motherboards.
Show more
Audio codec
Realtek ALC887
This motherboard uses Realtek ALC887, which is lower-end than 89.1% of Motherboards and the same as 7.8% of Motherboards.
Audio channels
7.1
This motherboard offers 7.1 audio channels, which is more than 4.7% of motherboards and equal to 95.3% of motherboards.
full 7.1 needs front panel audio.
Audio SNR
97 dB
This motherboard has an audio SNR of 97 dB, which is lower than that of 65.7% of motherboards and equal to that of 16.9% of motherboards.
Headphone amp support
no
This motherboard does not support a headphone amp. 58.8% of motherboards support this feature.
N. of 3.5mm audio jacks
3
This motherboard has 3 3.5mm audio jacks, which is more than 11.3% of motherboards and equal to 39.3% of motherboards.
Show more
VRM phases
?
N. of CPU power connectors
1
This motherboard has 1 CPU power connectors, which is fewer than 45.2% of motherboards and equal to 54.9% of motherboards.
N. of fan headers
3
This motherboard has 3 fan headers, which is fewer than 77.1% of motherboards and equal to 14.8% of motherboards.
Pump header
no
This motherboard does not have a pump header. 77.9% of motherboards include this feature.
Pump header max current
0 A
This motherboard supports up to 0 A on the pump header, which is lower than that of 76.2% of motherboards and equal to that of 23.8% of motherboards.
Show more

ASUS H170I-Plus D3 vs the average motherboard

246810TotalPlatformMemoryStorageExpansionPortsNetworkAudioPower & Cooling
  • More capable LAN controller
    This motherboard has a faster LAN controller than the average motherboard (Intel I219-V vs Killer + Intel + Realtek).
    Intel I219-V vs Killer + Intel + Realtek
  • 2 more USB 3.2 Gen1 ports
    This motherboard has more USB 3.2 Gen1 ports than the average motherboard (6 vs 4). The average motherboard has 4 USB 3.2 Gen1 port/s.
    6 vs 4
  • Supports Bluetooth
    This motherboard supports Bluetooth, while the average motherboard does not. 49% of motherboards support Bluetooth.
  • 2 more USB 3.2 Gen1 ports
    This motherboard has more USB 3.2 Gen1 ports than the average motherboard (6 vs 4). The average motherboard has 4 USB 3.2 Gen1 port/s.
    6 vs 4
  • More capable LAN controller
    This motherboard has a faster LAN controller than the average motherboard (Intel I219-V vs Killer + Intel + Realtek).
    Intel I219-V vs Killer + Intel + Realtek
  • Supports Bluetooth
    This motherboard supports Bluetooth, while the average motherboard does not. 49% of motherboards support Bluetooth.
  • More basic chipset
    This motherboard uses a more basic chipset than the average motherboard (Intel H170 vs Intel B860).
    Intel H170 vs Intel B860
  • 60% lower LAN speed
    This motherboard has a lower LAN speed than the average motherboard (1 Gbps vs 2.5 Gbps). The average motherboard offers LAN speed of 2.5 Gbps.
    1 Gbps vs 2.5 Gbps
  • Slower NVMe storage slots
    This motherboard has slower M.2 slots than the average motherboard (1x PCIe 3x4/SATA vs 1x PCIe 5x4, 2x PCIe 4x4).
    1x PCIe 3.0x4/SATA vs 1x PCIe 5.0x4, 2x PCIe 4.0x4
  • 75% less maximum memory capacity
    This motherboard has fewer maximum memory capacity than the average motherboard (32 GB vs 128 GB). The average motherboard supports 128 GB of memory.
    32 GB vs 128 GB
  • 2 fewer memory slots
    This motherboard has fewer memory slots than the average motherboard (2 vs 4). The average motherboard has 4 memory slot/s.
    2 vs 4
  • No NVMe RAID support
    This motherboard does not support NVMe RAID, while the average motherboard does. 59.9% of motherboards support NVMe RAID.
  • 2 fewer rear USB ports
    This motherboard has fewer rear USB ports than the average motherboard (6 vs 8). The average motherboard has 8 rear USB port/s.
    6 vs 8
  • More dated memory type
    This motherboard uses a more dated memory type than the average motherboard (DDR3 vs DDR4).
    DDR3 vs DDR4
  • 48.6% lower user score
    User score
    3.8/ 10
    ✕
    What it is
    How happy buyers are with this model, based on ratings from across the web.
    How we count it
    Enough data: A model needs at least 1 rating from across the web. Without one, it counts as 7.9, the mark of a weaker rated model in this category.
    Share: User score counts 10% of the overall score.
    Score distribution
    â–¼
    <55-66-77-88-99-10

    3.8

    Mark 7.8 is below the typical mark 8.4 of this category, so it cannot lift the score above the technical score

    70%

    8.2

    Rating

    30%

    6.8

    Popularity

    3.8 vs 7.4
  • 11.2% worse value for money
    ASUS H170I-Plus D3 has worse value for money than the average motherboard (6.92 vs 7.7).
    6.92 vs 7.7
  • More basic chipset
    This motherboard uses a more basic chipset than the average motherboard (Intel H170 vs Intel B860).
    Intel H170 vs Intel B860
  • No BIOS flashback support
    This motherboard does not support BIOS flashback, while the average motherboard does. 51.3% of motherboards support BIOS flashback.
  • Fewer BIOS update methods
    This motherboard offers fewer BIOS update methods than the average motherboard (UEFI utility, Windows app vs UEFI utility, flashback, Windows app).
    UEFI utility, Windows app vs UEFI utility, flashback, Windows app
  • Not ready for Windows 11
    This motherboard is not ready for Windows 11, while the average motherboard is. 77.4% of motherboards are ready for Windows 11.
  • No debug LED indicators
    This motherboard does not have debug LED indicators, while the average motherboard does. 78.7% of motherboards include debug LED indicators.
  • No automatic overclocking
    This motherboard does not support automatic overclocking, while the average motherboard does. 74.1% of motherboards support automatic overclocking.
    memory auto-OC only
  • Narrower Windows support
    This motherboard supports a narrower range of Windows versions than the average motherboard (Windows 10, Windows 7 vs Windows 11, Windows 10).
    Windows 10, Windows 7 vs Windows 11, Windows 10
  • 75% less maximum memory capacity
    This motherboard has fewer maximum memory capacity than the average motherboard (32 GB vs 128 GB). The average motherboard supports 128 GB of memory.
    32 GB vs 128 GB
  • 2 fewer memory slots
    This motherboard has fewer memory slots than the average motherboard (2 vs 4). The average motherboard has 4 memory slot/s.
    2 vs 4
  • More dated memory type
    This motherboard uses a more dated memory type than the average motherboard (DDR3 vs DDR4).
    DDR3 vs DDR4
  • 66% lower maximum RAM speed
    This motherboard has a lower maximum RAM speed than the average motherboard (1,600 MT/s vs 4,699.5 MT/s). The average motherboard supports RAM speed of 4,699.5 MT/s.
    1,600 MT/s vs 4,699.5 MT/s
  • 62.7% lower overclocked RAM speed
    This motherboard has a lower overclocked RAM speed than the average motherboard (1,866 MT/s vs 5,000 MT/s). The average motherboard supports overclocked RAM speed of 5,000 MT/s.
    1,866 MT/s vs 5,000 MT/s
  • Slower NVMe storage slots
    This motherboard has slower M.2 slots than the average motherboard (1x PCIe 3x4/SATA vs 1x PCIe 5x4, 2x PCIe 4x4).
    1x PCIe 3.0x4/SATA vs 1x PCIe 5.0x4, 2x PCIe 4.0x4
  • No NVMe RAID support
    This motherboard does not support NVMe RAID, while the average motherboard does. 59.9% of motherboards support NVMe RAID.
  • 1 fewer M.2 sockets
    This motherboard has fewer M.2 sockets than the average motherboard (1 vs 2). The average motherboard has 2 M.2 socket/s.
    1 vs 2
  • Less generous lane split
    This motherboard splits its PCIe lanes less generously than the average motherboard (x16 vs x16/x0/x4, x8/x8/x4).
    x16 vs x16/x0/x4, x8/x8/x4
  • No PCIe bifurcation support
    This motherboard does not support PCIe bifurcation, while the average motherboard does. 59.7% of motherboards support PCIe bifurcation.
  • No multi-GPU support
    This motherboard does not support multi-GPU, while the average motherboard does. 53.9% of motherboards support multi-GPU.
    Single PCIe x16 slot only.
  • 1 fewer PCIe x1 slots
    This motherboard has fewer PCIe x1 slots than the average motherboard (0 vs 1). The average motherboard has 1 PCIe x1 slot/s.
    0 vs 1
  • 2 fewer rear USB ports
    This motherboard has fewer rear USB ports than the average motherboard (6 vs 8). The average motherboard has 8 rear USB port/s.
    6 vs 8
  • 1 fewer rear USB-C ports
    This motherboard has fewer rear USB-C ports than the average motherboard (0 vs 1). The average motherboard has 1 rear USB-C port/s.
    0 vs 1
  • 3 fewer total USB connections
    This motherboard has fewer total USB connections than the average motherboard (12 vs 15). The average motherboard has 15 total USB connections.
    12 vs 15
  • 1 fewer USB 3.2 Gen2 ports
    This motherboard has fewer USB 3.2 Gen2 ports than the average motherboard (0 vs 1). The average motherboard has 1 USB 3.2 Gen2 port/s.
    0 vs 1
  • 1 fewer total USB-C connections
    This motherboard has fewer total USB-C connections than the average motherboard (0 vs 1). The average motherboard has 1 total USB-C connections.
    0 vs 1
  • 60% lower LAN speed
    This motherboard has a lower LAN speed than the average motherboard (1 Gbps vs 2.5 Gbps). The average motherboard offers LAN speed of 2.5 Gbps.
    1 Gbps vs 2.5 Gbps
  • Less recent Bluetooth version
    This motherboard has a less recent Bluetooth version than the average motherboard (4 vs 5.4).
    4 vs 5.4
  • 18 dB lower audio SNR
    This motherboard has a lower audio SNR than the average motherboard (97 dB vs 115 dB). The average motherboard has audio SNR of 115 dB.
    97 dB vs 115 dB
  • No headphone amp support
    This motherboard does not support a headphone amp, while the average motherboard does. 58.8% of motherboards support a headphone amp.
  • Less capable onboard audio
    This motherboard has a lower-end audio codec than the average motherboard (Realtek ALC887 vs Realtek ALC897).
    Realtek ALC887 vs Realtek ALC897
  • 2 fewer ARGB headers
    This motherboard has fewer ARGB headers than the average motherboard (0 vs 2). The average motherboard has 2 ARGB header/s.
    0 vs 2
  • 2.5 fewer fan headers
    This motherboard has fewer fan headers than the average motherboard (3 vs 5.5). The average motherboard has 5.5 fan header/s.
    3 vs 5.5
  • No pump header
    This motherboard does not have a pump header, while the average motherboard does. 77.9% of motherboards include a pump header.
  • 1 fewer RGB headers
    This motherboard has fewer RGB headers than the average motherboard (0 vs 1). The average motherboard has 1 RGB header/s.
    0 vs 1
  • 2 A lower pump header current limit
    This motherboard has a lower pump header current than the average motherboard (0 A vs 2 A). The average motherboard provides pump header current of 2 A.
    0 A vs 2 A

Third-party reviews

What customers like about ASUS H170I-Plus D3

  • High stability and reliability during long-term use
  • Comprehensive connectivity with 4 standard video ports (HDMI, DisplayPort, DVI, VGA)
  • Built-in dual-band Wi-Fi and Bluetooth 4.0 support
  • Ample USB capacity for a Mini-ITX form factor, featuring six USB 3.0 ports
  • Compact 17x17 cm design makes it ideal for HTPC or Small Form Factor (SFF) builds
  • Includes high-speed storage options like M.2 (PCIe/SATA mode) and SATA Express
  • Unique support for DDR3/DDR3L memory on the Skylake platform, useful for reusing older RAM
  • Robust hardware safeguards including 5X Protection II and DIGI+ VRM for stable power delivery

What customers don't like about ASUS H170I-Plus D3

  • BIOS updates may be required for Kaby Lake CPU compatibility and to fix HDMI audio driver issues
  • SATA port placement can be awkward, with some ports located behind the RAM slots
  • Installing Windows 7 requires a customized boot disc to include necessary USB 3.0 drivers
  • Lack of overclocking support, even when paired with 'K' series unlocked processors
  • RAM installation should be completed before installing a dedicated graphics card due to tight spacing
  • Reports of inconsistent customer service experiences regarding RMA and warranty claims

Verdict

The Asus H170I-PLUS D3 is a compact Mini-ITX motherboard featuring the Intel H170 chipset and LGA1151 socket, designed to support 6th-generation Intel processors. A standout feature is its support for up to 32GB of DDR3/DDR3L memory (up to 1866MHz O.C.), making it ideal for users transitioning from older hardware. It offers modern connectivity including a PCIe 3.0 x4 M.2 slot for fast NVMe SSDs, integrated 802.11ac Wi-Fi with Bluetooth 4.0, and a versatile array of video outputs (HDMI, DisplayPort, DVI-D, and VGA). Main pros include its space-saving form factor, extensive 5X Protection II hardware safeguards for durability, and robust networking options. However, its primary cons are the limited expansion potential typical of Mini-ITX boards, having only two DIMM slots and a single PCIe x16 slot, along with the lack of modern USB Type-C ports.

Compare ASUS H170I-Plus D3 with other products in the Motherboards category

1Product to compare no. 1
VS
2Product to compare no. 2
VS
3Product to compare no. 3 (optional)

Graphic comparison of ASUS H170I-Plus D3 and other products in the Motherboards category

No results found
