Canon EF 20mm F 2 8 USM Review | 54 Data compared

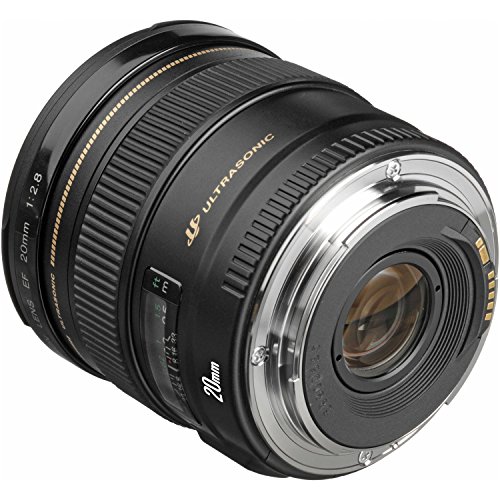

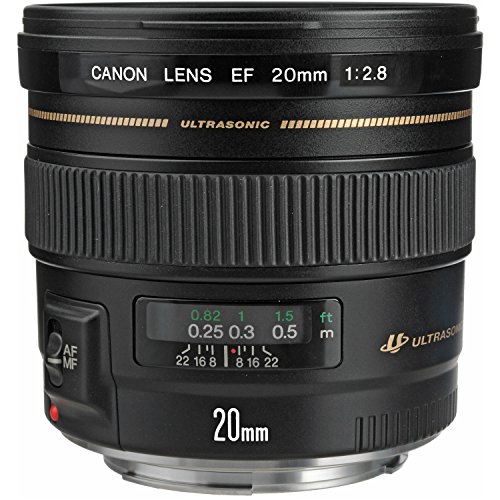

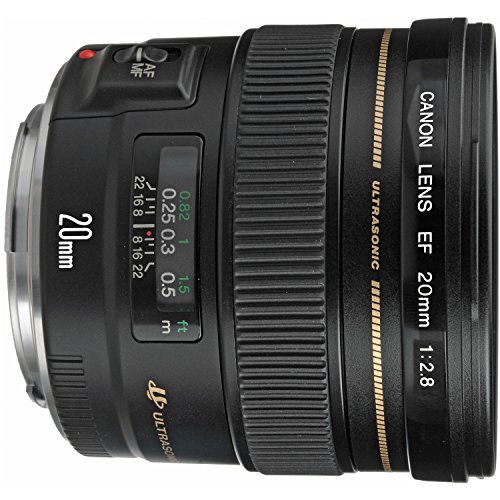

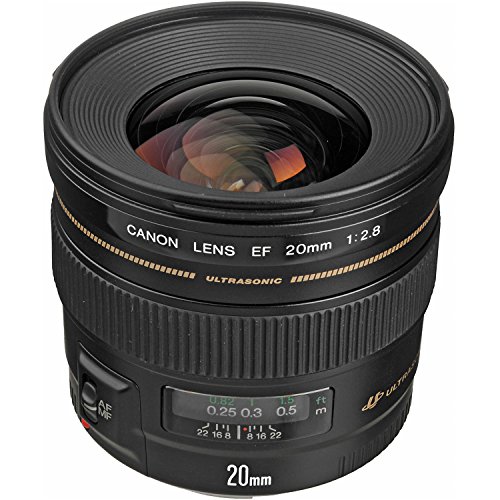

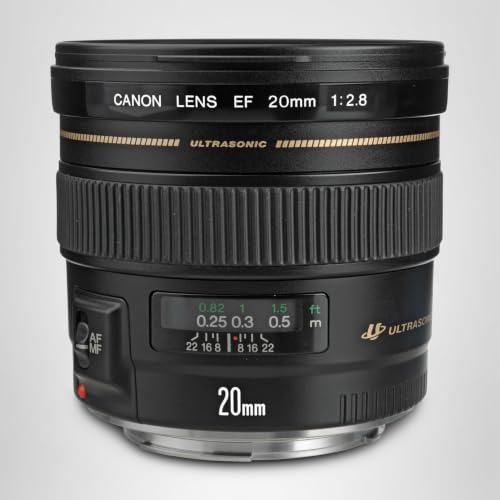

The Canon EF 20mm f/2.8 USM lens features a solid, high-quality build with fast and quiet Ring-type Ultrasonic Motor (USM) autofocus. It provides good geometric distortion control and decent center sharpness, which improves when stopped down beyond f/3.2. However, the lens is limited by significant optical weaknesses, including poor corner sharpness even on cropped sensors and heavy vignetting at f/2.8, requiring stopping down to f/4-f/5.6 for better uniformity. Additionally, it displays inferior contrast and produces a noticeable purple color cast compared to L-series alternatives.

The Canon EF 20mm f/2.8 USM is a well-built, compact, and fast-focusing ultra-wide-angle lens that delivers good overall image quality, making it a practical tool for full-frame landscape and architectural photography. It is praised for its solid construction and reliable USM autofocus performance. However, the lens shows its age with significant distortion compared to modern designs, is less effective on APS-C sensors, and suffers from a stiff manual focus ring and the lack of a bundled lens hood.

The Canon EF 20mm f/2.8 USM is a compact ultra-wide-angle prime lens originally designed for full-frame film cameras, rendering it fully compatible with both full-frame and sub-frame digital bodies. A major strength of the lens is its physical construction and handling, featuring a durable metal mount, a windowed distance scale, and an ultrasonic motor (USM) that delivers rapid, nearly silent autofocus with full-time manual override. Optically, it performs exceptionally well on sub-frame (APS-C) sensors when stopped down between f/4 and f/8, yielding sharp images with minimal corner shading. Additionally, it controls barrel distortion relatively well for a wide-angle lens, showing a conservative 0.5% in the corners. However, the lens suffers from notable optical drawbacks, particularly when mounted on full-frame bodies or shot wide open at f/2.8. At f/2.8, sharpness is quite soft across the board, and full-frame shooting exposes severe corner softness and heavy chromatic aberration. Vignetting is also a massive issue on full-frame cameras, where the corners are a drastic 2.1/4 stops darker than the center at maximum aperture—a trait that persists to some degree at all aperture settings....

The Photozone Review of the Canon EF 20mm f/2.8 USM lens highlights it as an aging 1992 design that loses its original ultra-wide identity on APS-C digital bodies, converting instead into a moderate 32mm equivalent wide-angle lens. Mechanically, the lens earns praise for its constant-length true internal focusing (IF) design, a non-rotating front element that allows easy polarizer usage, and an exceptionally fast, near-silent ring-type USM autofocus drive featuring full-time manual focusing. It also delivers highly favorable, minimal barrel distortion (~1.55%) for its class, along with exceptionally high center sharpness that peaks dynamically from f/4 onward. However, the review exposes significant optical drawbacks stemming from its dated layout, noting that its performance is overall a "mixed bag" that struggles to compete with modern zoom lenses. The build quality is decent but heavily reliant on plastic, and the focus ring on the tested sample exhibited a slightly wobbly feel. Optically, the lens suffers from unexpectedly high vignetting at f/2.8—measuring a notable 1.28EV despite the cropped sensor's "sweet spot" advantage—and requires stopping down to at least f/4 to bring light drop-off under...

The diglloyd review of the Canon EF 20mm f/2.8 USM lens portrays it as an affordable, accessible wide-angle option that ultimately delivers highly mediocre and lackluster optical performance on full-frame cameras. On the positive side, the reviewer highlights that the lens is relatively lightweight at approximately one pound (including the lens shade) and offers reasonable performance strictly within the central two-thirds area of the frame. Additionally, it can provide fairly good results on cropped-sensor EF-S cameras (like the Digital Rebel) where its problematic outer edges are naturally cropped out, and it occasionally manages to outperform the far more expensive Canon EF 16-35mm f/2.8L II zoom lens in specific edge-case scenarios. However, the cons heavily outweigh the pros, leading the reviewer to firmly refuse to recommend it for demanding landscape work. Field tests and MTF charts confirm that the lens produces distinctly murky, smeared, and blurry results across the outer regions of the image, even when stopped down to f/8. Its optical performance is far inferior to the much sharper Zeiss 21mm f/2.8 Distagon, and it falls short compared to a...

According to Ken Rockwell, the Canon EF 20mm f/2.8 USM is a durable, compact, and affordable ultrawide prime lens featuring superior metal construction, fast USM autofocus, and excellent ergonomics for both film and full-frame cameras. While offering great value, the lens has older optical characteristics, including uncorrected lateral color fringes, noticeable barrel distortion, and soft corners when shot wide open. To achieve optimal sharpness, Rockwell recommends stopping down to f/8 or f/11, making it a strong choice for photographers prioritizing portability and build quality over modern, high-cost zoom lenses.

The ⁠PCMag review highlights the Canon EF 20mm f/2.8 USM as a fairly compact wide-angle prime lens tailored for Canon D-SLR cameras. It is highly praised for delivering a dramatic, ultra-wide field of view when paired with full-frame bodies, making it a solid choice for stunning landscapes. Key advantages noted in the review include its well-controlled distortion characteristics—making it well-suited for architectural photography—and an impressive close-focusing distance of just 0.8 feet. This close focusing ability enables users to experiment with creative, shallow depth-of-field shots. Furthermore, lab tests reveal that while the lens is a bit soft wide-open at f/2.8 (scoring 1,689 lines), it sharpens quickly and beautifully once stopped down, peaking at an excellent 2,374 lines at f/8. On the downside, the primary weakness identified in the review is its soft optical performance at its widest aperture of f/2.8. At this setting, it falls short of the 1,800 lines PCMag requires for an image to be considered truly sharp. Additionally, cross-referencing PCMag's core metrics indicates that the lens is prone to color fringing (chromatic aberration). Ultimately, the review concludes that...

The PCMag review of the Canon EF 20mm f/2.8 USM highlights a compact, lightweight (14.3 oz) prime lens offering an ultra-wide field of view suitable for landscapes and architecture. It is noted for minimal, controlled distortion, displaying only 0.2 percent pincushioning on full-frame cameras. However, the lens shows significant weakness at the f/2.8 maximum aperture, producing soft images that fail to meet sharpness standards in laboratory testing. Optimum sharpness requires stopping down to at least f/4, and the lens is prone to color fringing in high-contrast scenes. PCMag UK

The Canon EF 20mm f/2.8 USM is a compact ultra-wide-angle prime lens designed for Canon D-SLR cameras, earning a 4.0 "Excellent" rating from PCMag. When paired with a full-frame camera body, it provides a sweeping field of view well-suited for landscapes and architecture, showing an impressive 0.2 percent pincushion distortion. On smaller APS-C sensor bodies, it shifts to a narrower 32mm equivalent field of view, functioning as a practical moderate wide-angle lens. Physically, it weighs 14.3 ounces, measures 2.8 by 3.1 inches, features a close-focusing distance of 0.8-foot, and accommodates a 72mm screw-in filter on its non-rotating front element. In terms of performance, the lens provides distinct advantages alongside notable optical limitations. The primary advantages include its ultra-wide perspective, minimal distortion, and high sharpness once stepped down to f/4 and beyond—peaking at 2,374 lines at f/8 in laboratory testing. Conversely, the primary drawbacks are that the image quality is slightly soft when shot wide open at f/2.8, failing to hit the 1,800-line sharpness benchmark. It is also prone to color fringing in high-contrast scenes and flare, and does not ship...
