TP-Link RE505X Review | 63 Data compared

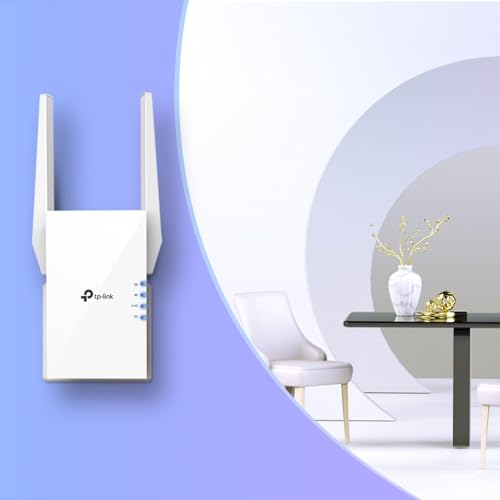

The TP-Link AX1500 Wi-Fi 6 Range Extender (RE505X) is a plug-in dual-band device designed to extend wireless coverage from any router, though it requires a compatible TP-Link OneMesh router to create a unified mesh network with a single SSID. It features a bulky design with two external antennas, a single gigabit LAN port, four front-facing LED status indicators, and dedicated WPS and reset buttons. Managed through a web console or the user-friendly TP-Link Tether mobile app, the extender gives users access to helpful features like location assistance, power management scheduling, and access controls with whitelist and blacklist configurations. In performance testing, the RE505X showed clear pros and cons regarding its speed and throughput. The primary advantage is its excellent 5GHz performance, outperforming competitors at long-range 40-foot tests with speeds of 203Mbps. However, a significant drawback is its weak 2.4GHz signal penetration, which delivered a last-place throughput of just 9Mbps at 40 feet and left dead zones in the home's corners and garage. While the RE505X earned a good 3.5-star rating for being easy to install, the review ultimately recommends purchasing...

The TP-Link AX1500 Wi-Fi 6 Range Extender (RE505X) is an easy-to-install, dual-band plug-in device designed to boost wireless coverage across any router brand. In performance testing, it demonstrated solid 5GHz throughput, achieving a leading speed of 203Mbps at 40 feet and 245Mbps at 20 feet, which significantly outperformed its competitor, the Netgear EAX15. The extender includes a gigabit LAN port, external antennas, and four front-facing LED status indicators. Users can manage it via the TP-Link Tether mobile app or a web console. The web platform offers advanced features like power scheduling and access control with whitelist and blacklist configurations. Despite these capabilities, the RE505X has several distinct limitations, particularly its bulky design and middling 2.4GHz signal strength, which dropped to a last-place 9Mbps in 40-foot tests and showed weak penetration in home corners. Additionally, it requires a compatible TP-Link OneMesh router to create a seamless mesh network sharing a single SSID; otherwise, it appends an "_EXT" suffix to its network name. Ultimately, PCMag rated the device a 3.5 out of 5. They noted that while it gets the job done,...

The Blacktubi review highly praises the TP-Link RE505X, a WiFi 6 AX1500 range extender that utilizes TP-Link OneMesh technology to create a unified network with seamless 802.11k/v roaming. Powered by a Broadcom 1.5GHz triple-core CPU, the extender supports speeds up to 1201Mbps on the 5GHz band. When paired with a compatible router like the Archer AX20, it outpaced TP-Link’s own Deco X20 in testing, providing exceptional coverage and dual-band simultaneous backhaul redundancy for less money. Setting up the device via the TP-Link Tether app takes under five minutes, and all network changes seamlessly sync with the main router via a hidden, dedicated connectivity network.

The Trusted Reviews assessment of the TP-Link RE505X highlights it as a well-priced, versatile Wi-Fi 6 range extender with OneMesh compatibility for creating a seamless mesh system to eliminate network dead spots. The device is praised for its versatile installation, ease of use, and excellent value for money as an entry point for upgrading home network reliability. However, the evaluation notes that overall data speeds are not the best compared to more robust, expensive networking options. Despite these speed limitations, the hardware is considered a highly capable, cost-effective tool for expanding wireless coverage throughout a home.

The TP-Link RE505X is a powerful dual-band Wi-Fi range extender priced at around $89.99 (£59.99), designed to significantly boost wireless coverage across a home. Its standout feature is support for the modern Wi-Fi 6 (802.11ax) standard, making it highly effective at delivering faster, more reliable connections over long distances to modern laptops, tablets, and smartphones. The device features a single gigabit Ethernet port on its left side and supports TP-Link OneMesh technology. This allows users with compatible TP-Link routers to seamlessly convert their network into a unified mesh Wi-Fi system rather than managing a traditional, fractured extender setup. Furthermore, installation and ongoing network monitoring—such as blocking devices or altering SSIDs—are heavily simplified by using the intuitive TP-Link Tether mobile app. Performance testing highlights strong signal penetration, as the extender successfully maintained a 5GHz connection on a Wi-Fi 6 client located two rooms away, outperforming standard router reach. A primary pro of the RE505X is its reasonable price point for a Wi-Fi 6 capable device, alongside its robust performance and flexible OneMesh support. However, the device does present a few notable...

The $89.99 TP-Link AX1500 Wi-Fi 6 Range Extender (RE505X) offers easy setup via the Tether app, universal compatibility, and excellent 5GHz throughput, topping 203Mbps at 40 feet in PCMag's testing. It functions well as a mesh extender with compatible routers and includes a Gigabit Ethernet port for wired access point functionality. However, the RE505X suffers from weak 2.4GHz performance, producing just 9Mbps at 40 feet and struggling with signal penetration. Furthermore, PCMag notes that the similarly priced TP-Link RE603X delivers superior speed and range, making it a better value option. AI can make mistakes, so double-check responses

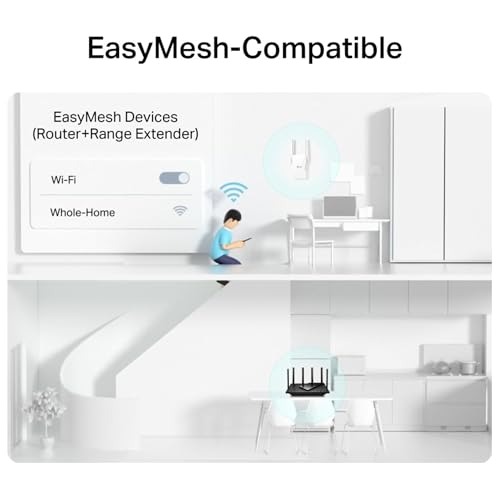

A major benefit of the RE505X is its seamless integration with TP-Link OneMesh routers, allowing users to move through their homes without needing to switch Wi-Fi networks manually. Additionally, it remains highly affordable and is easy to configure. However, the device is not without its limitations. It does not work with TP-Link’s own Deco mesh lineup due to technical and commercial compatibility issues. Furthermore, the extender does not always outperform a direct router connection, as demonstrated in kitchen testing where speeds were slightly slower when routed through the extender rather than directly to the main router.
