Pentax HD DA 20 40mm F2 8 4 ED Limited DC WR Review | 54 Data compared

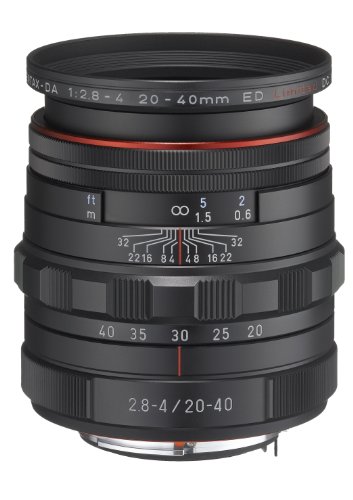

The HD Pentax-DA 20-40mm f/2.8-4 ED Limited DC WR is a premium, compact APS-C lens offering exceptional all-metal, weather-resistant build quality, a fast DC motor, and excellent center sharpness. It is praised for its lightweight design (291g) and 55mm non-rotating filter ring, making it highly functional for street and landscape photography. However, the lens has a high price point, restricted 2x zoom range, and significant edge softness at wider apertures, requiring stopping down to f/5.6-f/8 for optimal edge-to-edge performance. Additional drawbacks include a rotating manual focus ring and a zoom mechanism that extends the barrel.

The Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR review by LensTip highlights a lens featuring excellent build mechanics and a highly durable, weather-sealed metal casing. Optically, the lens delivers good image quality in the frame centre, achieving an MTF50 resolution level of 40 lpmm or higher at its maximum relative aperture across all focal lengths. It earns praise for its exceptional flare control and ghosting resistance thanks to its new high-definition (HD) coatings, along with very good correction of longitudinal chromatic and spherical aberrations. Furthermore, the autofocus mechanism operates accurately and quietly, and problems with astigmatism or vignetting remain moderate overall. However, the review exposes several notable downsides, particularly concerning its high price relative to its performance. The image quality falls apart near the edges of the frame, showing weak resolution that requires stopping down to f/5.6 to achieve useful photos. Even its maximum center sharpness tops out around 47–48 lpmm, a result comparable to cheap kit lenses rather than premium "Limited" glass. Additionally, the autofocus speed is slow, taking nearly a full second to sweep the...

The Pentax HD DA 20-40mm f2.8-4 ED Limited is a lightweight (283g), weather-sealed zoom lens designed for APS-C cameras, offering a 31-62mm equivalent focal length range. Evaluated by DxOMARK, it achieved a score of 17 points, demonstrating high-quality machined aluminum construction, excellent light transmission (3-4.2 TStops), and strong control over lateral chromatic aberration. Optically, the lens performs competitively against pancake primes when stopped down to f/5.6. At 40mm, it delivers superior central sharpness at the maximum aperture compared to the standalone 40mm prime, and it achieves peak overall sharpness at 30mm at f/8. However, the lens suffers from relatively low uniformity and weak peak sharpness when shooting wide open, particularly at shorter focal lengths and in the outer margins of the frame. Testing revealed noticeable barrel distortion at 20mm, light vignetting at both ends of the zoom range, and a vulnerability to diffraction softening from f/11 onward. When compared to modern rivals like the Nikon 18-35mm, the Pentax lens falls behind in peak openness sharpness and carries a higher price tag. Furthermore, its larger zoom profile may fail to appeal...

The Imaging Resource review highlights the HD Pentax-DA 20-40mm f/2.8-4 ED Limited DC WR as an exceptionally well-built, compact, and weather-sealed premium standard zoom for APS-C DSLRs. Key advantages include excellent central sharpness, a quiet DC motor, high-grade HD coating, and robust, all-metal construction. However, the lens has a limited 2x zoom range, significant vignetting and chromatic aberrations, and lower edge-to-edge sharpness when shooting wide open. It also features a variable f/2.8-4 aperture and comes with a premium price tag, making it a specialized choice.

The Pentax HD DA 20-40mm F2.8-4 ED Limited DC WR is a robust, all-metal, weather-sealed zoom lens designed for APS-C Pentax DSLRs, offering a compact design with sharp, high-quality optics. While it serves as a premium, durable option for photographers, its limited 2x zoom range, variable f/2.8-4 aperture, and $799.95 price point make it less flexible and more expensive than competing alternatives like the Sigma 17-70mm or Sigma 18-35mm F1.8.

The HD Pentax-DA 20-40mm f/2.8-4 Limited DC WR lens is highly praised for its premium, all-metal build quality, compact design, and unique "3D pop" rendering that evokes a film-era aesthetic. Key pros include its robust weather-sealed construction, excellent handling, and the ability to produce images with rich character. Conversely, the review notes compromises such as a limited, narrow focal range and a variable f/2.8-4 aperture, which reduce its versatility compared to faster, constant-aperture alternatives. While not the most utilitarian option, the lens is recommended for its high-quality construction and distinctive image rendering. Bradford Photo.

📸 A Flawed but Charming Walk-Around Zoom The HD Pentax-DA 20-40mm f/2.8-4 Limited lens is celebrated as a highly portable, weather-sealed "walk-around" optic that beautifully bridges the gap between classic design and modern utility. Equivalent to a 30-60mm focal range on APS-C sensors, it acts like a flexible prime lens with just enough wiggle room to adjust framing without cropping. Users rave about its premium, lightweight aluminium build—weighing just 283 grams—and its quiet, modern autofocus system. Reviewers also highly praise its distinct character and "pixie dust" rendering, which delivers pleasing bokeh and a nostalgic, emotional shooting experience reminiscent of classic vintage film lenses. ⚠️ Optical Imperfections and Quirky Mechanics However, the lens compromises clinical perfection for this compact, lightweight form factor. Its variable f/2.8-4 aperture is relatively slow, and laboratory MTF values reveal noticeable sharpness drop-offs around the image edges at most focal lengths and apertures. Chromatic aberration is consistently present in high-contrast areas when shot wide open, and obvious vignetting occurs at the wide 20mm end—requiring digital correction when capturing vast blue skies. On the physical side, the lens...

The HD Pentax-DA 20-40mm f/2.8-4 Limited DC WR lens, the first zoom in the Limited series, features a premium, weather-sealed metal build with an aluminum barrel, knurled zoom ring, and a 55mm filter thread. It incorporates the Quick Shift focusing system, allowing easy manual adjustment after AF lock, but the manual focus ring rotates during autofocus and the DC motor is not as quiet as an ultrasonic lens. Optically, it provides a 35mm equivalent range of 30.5-61.5mm, though it suffers from a high £850 launch price and a variable maximum aperture that slows to f/4 at the 40mm end. Further, the lens, which features limited, poorly damped manual focus, is limited by a restricted 2x zoom range.
